>Electronics & Motors>Motors>1/10 EP>ARES PRO V4 540 Sensor Brushless Motor SPEC 17.5T
SkyRC

ARES PRO V4 540 Sensor Brushless Motor SPEC 17.5T

SkyRC ARES PRO V4 540 SPEC 17.5T sensored brushless motor

More details

SkyRC

SKY400034-03

In pre-order New item in pre-order The announced products is not available yet

 Shippingcosts from 6.98€
or collect for free at the shop. .

58,99 €


Notify me when available

More info

ROAR Approved
Roaring Ahead

On the track or in every turn, the ROAR-approved ARES PRO 4 delivers uncompromising, professional-grade power.
ROAR isn’t just about compliance—it’s a mark of excellence.
Race with confidence. Race with ARES PRO 4.

Competition-Optimized Design

Every Detail Tuned to Win. Engineered to Excel.

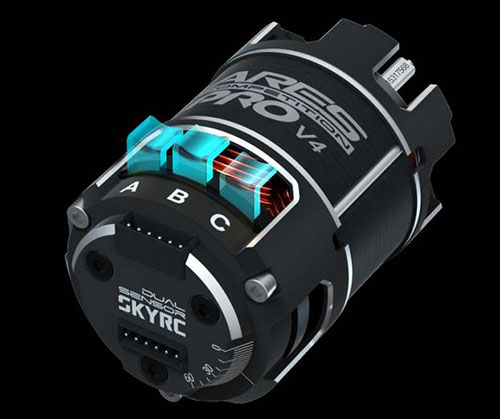

Low-Resistance Solder Tabs

High-quality tabs minimize power loss, ensuring maximum current flows straight to the rotor.

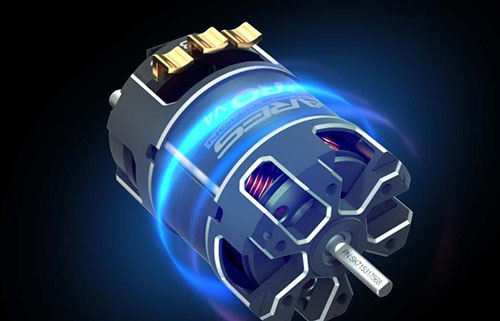

Stay Cool: CNC Aluminum Heatsink Case with Rear Venting

The precision-machined aluminum case dissipates heat efficiently, while a large rear vent boosts airflow over the Hall sensor for stable, reliable performance.

Global-Grade Bearings & Precision Shaft for Ultra-Smooth Control

Top-tier international brand bearings paired with a high-precision shaft ensure buttery-smooth, accurate operation—race after race.

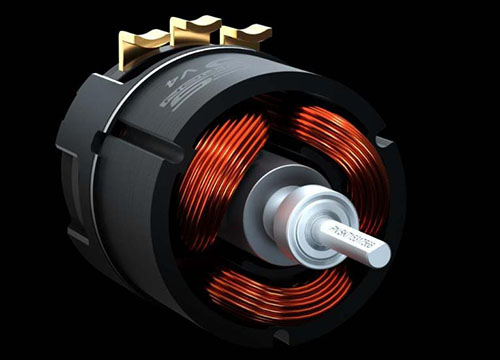

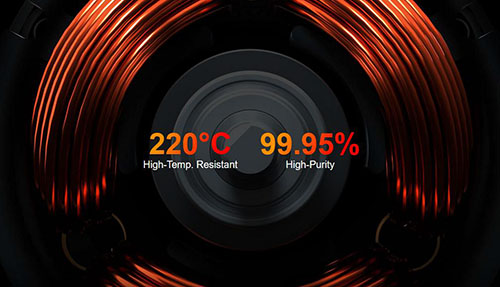

High-Purity, High-Temp Copper Windings

220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

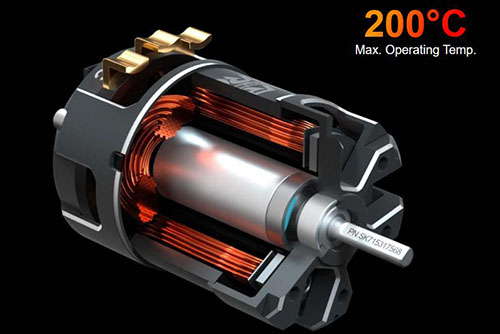

Precision-Balanced, Heat-Resistant Rotor

Meticulously balanced for ultra-smooth rotation and minimal vibration, the rotor is crafted with a 200°C heat-resistant, explosion-proof structure—delivering consistent power, higher RPMs, and lasting durability.

200°C High-Temp Neodymium Magnets

200°C heat-resistant neodymium magnets and a high-efficiency iron core deliver strong torque, stable magnetism, and consistent performance under pressure.

Advanced Sensor
No Hesitation. Just Precision.

ARES PRO 4 features advanced sensor technology for ultra-smooth throttle response and precise low-speed control—crucial for technical tracks and tight corners. By eliminating cogging, or hesitation at low RPMs, it delivers seamless, immediate power exactly when you need it.

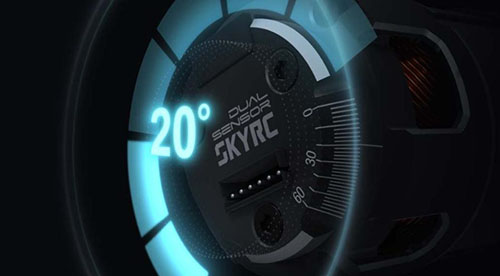

Adjustable Timing.
Any Track.

Adjustable timing is the core of brushless precision, enabling power delivery to adapt seamlessly to any track condition.

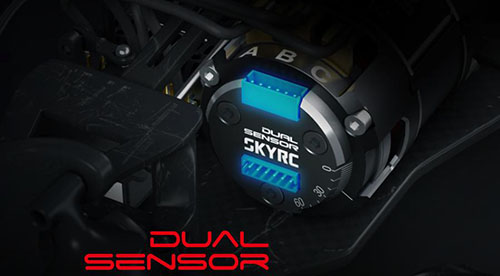

Redundant Dual Sensor Ports.
Zero Hassle.

Dual sensor

Placed in different orientations, the dual sensor ports simplify wiring and offer built-in redundancy. If one fails, the other keeps you running—seamlessly and reliably.
Plug in. Power on. No setup—just pure performance.

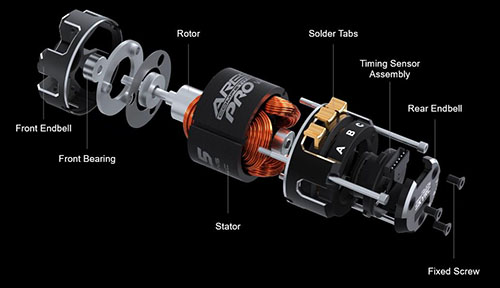

Modular by Design.
Built to Stay New.

ARES PRO 4 features a fully rebuildable, modular design—allowing easy disassembly of the housing, stator, windings, and bearings with standard RC tools.
Clean, service, and swap components to keep performance sharp and consistent, race after race.
Always fresh. Always in control.

Multiple Turn Options.
Ready for Any Track.

Each turn rating gives your car its own distinct character.
Lower turns deliver explosive speed and powerful thrust.Higher turns offer smooth, consistent power for confident control, lap after lap.


Specifications

  • Size: 35.8x35.8x52mm
  • Weight: 148g±5g
  • Operating temperature: -10°C-80°C
  • Operating humidity: 20%-80% (non-condensing)
  • Storage temperature: 0°C-50°C
  • Storage humidity: 30%-60% (non-condensing)

  • Turns : 17.5 T
  • KV : 2750
  • Watts : 130W Max.
  • Rotor（mm） : Φ12.5*Φ7.15*25.2
  • Battery Cells : 1~3S（LiPo）



Data sheet

  • Manufacturer : SkyRC
