NC1600 NiMH AA/AAA battery charger

SkyRC NC1600 is specially designed for AA/AAA NiMH/NiCD batteries. It has four independent slots that can charge 4 batteries simultaneously.

With the three working modes of CHARGE, DISCHARGE and REFRESH, it is capable of charging, discharging, and analyzing the batteries fastly.

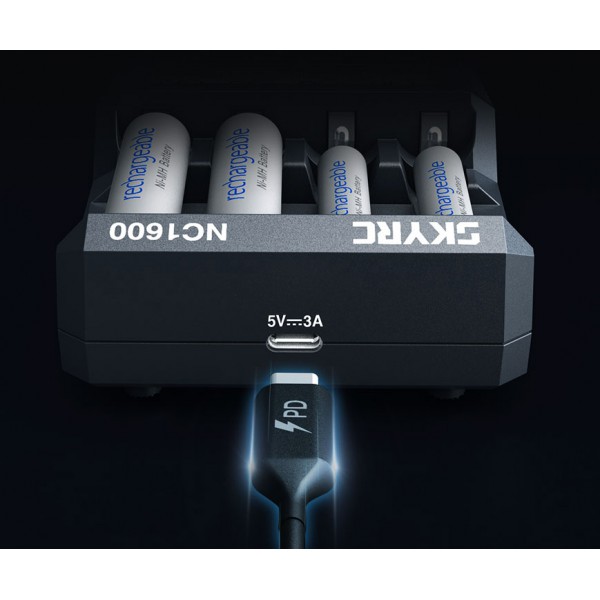

The charger is not only compatible with the ordinary 5V/2.1A adaptors but also with QC3.0 and PD 5V/3.0A adaptors. The charge rate can reach up to 1600mA at max.

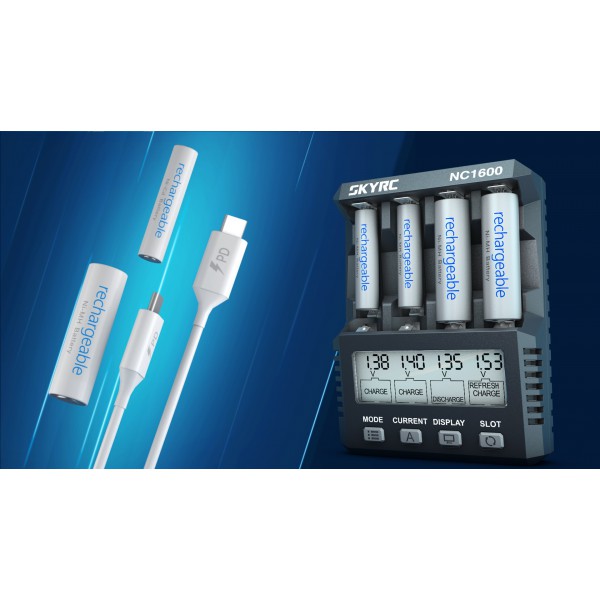

Equipped with the LCD screen, various battery parameters and real-time datas are all at a glance!

• Four independent slots allow charging four cells simultaneously.
• Easy operation with four buttons.
• Intuitive interface with independent display for each slot.
• Working with both 15W QC3.0, PD 5V/3.0A, or 5V/2.1A adaptor.
• Battery parameters and real-time datas are all at a glance w/ LCD screen.

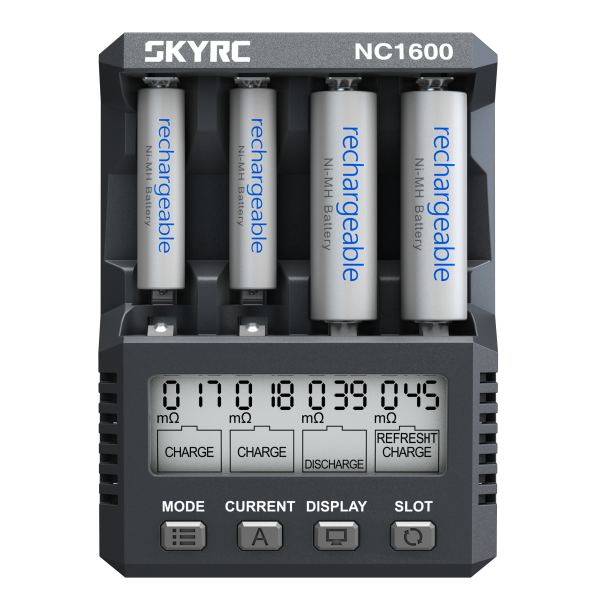

• Auto-measure internal resistance once the battery is inserted.
• Three working modes of CHARGE, DISCHARGE & REFRESH.
• Auto-start if no operation within eight seconds after the battery is inserted.
• Adjust current automatically based on the battery internal resistance detected.
• Trickle current ensure the battery is truely fully charged.
• Multiple protections: Over-temperature Protection, Reverse Polarity Protection, Over-current Protection, Capacity Protection, Over-voltage Protection, and Short-circuit Protection

• Input Power: 15W QC3.0, PD 5V/3.0A or 5V/2.1A
• Battery Type: NiMH/NiCD
• Battery Size: AA/AAA
• Charge Rate:
  • When powered by 15W QC3.0, PD 5V/3.0A adaptor: 1600mA/slot for 3 batteries; 1500mA/slot for 4 batteries.
  • When powered by 5V/2.1A adaptor: 1600mA/slot for 2 batteries; 1000mA/slot for 4 batteries.
• Discharge Rate: 100-700mA
• Trickle Charge Rate: 30-70mA
• Working Modes: Charge, Discharge and Refresh mode
• - V: 7mV
• Discharge Cut-off Voltage: 0.9V
• Capacity Protection: 3000mAh
• Working Temperature: 0-40℃
• Working Humidity: 10-90%RH
• Storage Temperature: -10-70℃
• Storage Humidty: 20-70%RH
• Net Weight: 114g
• Size: 108x79x32.9mm

• 1 x NC1600 Charger
• 1 x User manual

Note : Batteries are not includes
