V16 2,4GHz 4in1 LBT Radio (Multimode - M2)

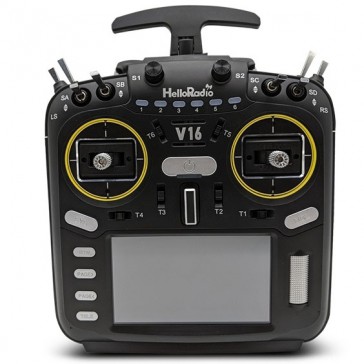

The state-of-the-art HelloRadio V16 remote control combines sophisticated design with full control functionality. With the EdgeTX open-source system and an LED touch display, it opens up a whole new world of possibilities. Intelligent safety functions, flexible module compatibility and precise motion control ensure you always have full control.

EdgeTX open source system

The V16 has the EdgeTX open source firmware pre-installed. EdgeTX is open-source firmware for remote control transmitters used in radio-controlled (RC) applications such as model aeroplanes, drones, model ships and model vehicles. It is highly customisable, allowing users to configure their transmitters and adjust the settings according to their individual preferences and specific needs.

EdgeTX supports a variety of RC protocols, making it a popular choice in the RC community. Its flexible and powerful features make it a versatile tool for advanced users looking to take their RC activities to the next level.

4N1 Radio System

The V16 is offered with an internal 4N1 RF module. The 4N1 multi-protocol radio system includes the NRF24L01, CC2500, A7105, and CYRF6936 RF chips. It is compatible with HoTT, Futaba SFHSS, FrSky, DSM/DSMX, Walkera Devo, FlySky, AFHDS2A, Hubsan, HiSky, Syma, and ASSAN protocols.
The 4N1 LBT version (Europe) is limited to LBT-compliant protocols: HoTT, FrSKY X/X2 LBT, and DSMX.

T-Antenna:

This newly developed, patented design ensures excellent signal quality and increased range. It can also be folded out to serve as a carrying handle.

V16 Versions :

• EdgeTX open source system
• Convenient 4.3 inch IPS touch display
• Multimode sticks arrangement - selection between Mode1, 2, 3 or 4
• Foldable T-antenna for excellent signal quality
• Mode switches 1 to 6 can be defined as required
• Internal 4in1 HF module
• Compatible with external modules with micro JR slot
• Dual serial hardware port for communication with the external RF module
• Optimized LCD circuit design that frees up memory and CPU resources
• Supports ESP32-C3-MINI and XIAO ESP32-C3 Bluetooth modules - offering more possibilities for future applications
• Reverse control circuit to support multiple types of external RF modules
• Charging circuit automatically stops charging when overvoltage is detected in the battery cells
• Protection circuit to prevent damage caused by reverse polarity connection of the power supply
• USB-C port for connection to the PC
• 3.5mm socket for connecting a teacher/student cable
• 3.5mm socket for connecting headphones
• USB-C port for connection to a charging cable
• SD card slot with 512MB micro SD card
• Serial interfaces for flashing the firmware

• Dimensions: 286*128*182 mm
• Weight: 755g (without battery)
• Transmission frequency: 2.400 GHz-2.480 GHz
• Internal RF options: 4in1
• Transmission power: LBT max. 100 mW
• Supported protocols: Module-dependent
• Operating current: 450mA
• Operating voltage: 6.6-8.4 V DC
• Radio firmware: EdgeTX
• Channels: 16 channels
• Display: 4.3-inch IPS full-color touch panel with a resolution of 480 x 272 pixels
• Sensors: Hall
• Module slot: Compatible with the following micro JR modules: Multi-protocol modules, Ex-pressLRS, Ghost, TBS Crossfire, TBS Tracer etc.
• Update method: Supports USB-C for online update / SD card for offline update
• Battery slot: Standard 18650 battery (2 pieces) or HelloRadio TX battery pack

• 1 x V16
• 1 x transmitter strap
• 1 x USB-C cable
• 1 x 18650 battery compartment
• 1 x 1.5 mm hex key
• 4 x springs with less tension
• 1 x quick start guide
• 1 x 1.5 mm hex key
