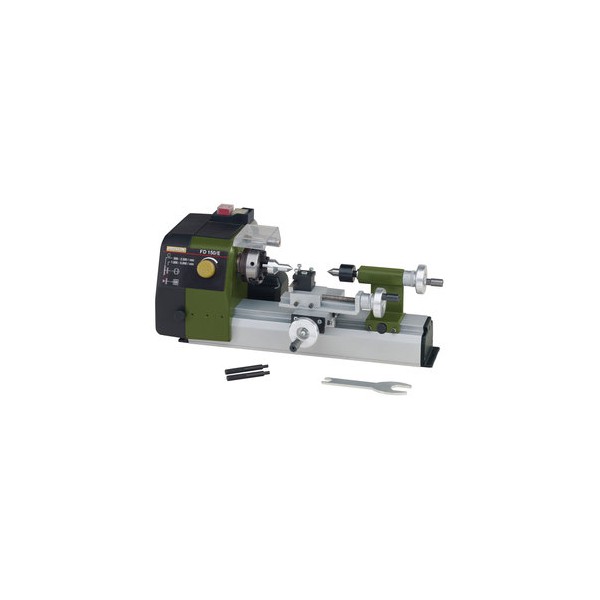

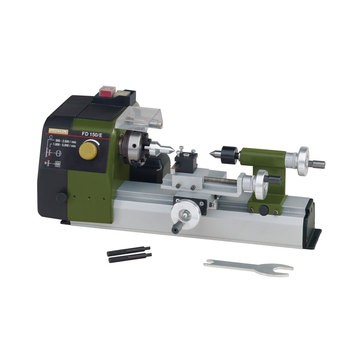

Precisie draaibank FD 150/E

2-speed belt drive with additional electronic control allow spindle speeds up to 5,000 rpm.
For flat turning, longitudinal turning, hollow turning, conical turning, tapping and drilling.
Complete with 3-jaw chuck and rotating tip.
Between centers 150 mm.
Height of the tips 55 mm.
Height above the support 33 mm.
Machine base with extruded aluminum dovetail guide.
Die-cast aluminum base.
With special current silent motor, 2-speed belt drive and extra speed control: For high torque at low rpm for large parts and for the right cutting speed, even with the smallest parts.
Relay switch with emergency stop function and restart protection.
Precision spindle with through hole 8.5 mm.
Chuck for standard ER 11 pliers.
3-jaw chuck concentric: inner jaw 1 - 20 mm, outer jaw 20 - 50 mm.
Die-cast aluminum tailstock.
With pinole and tounante point (adjustment MK 0 / short).
Support: moves manually on the base and locks with lever.
Rotating support for turning 6 x 6 mm steel.
Possibility of work by high sliding movement (60 mm of travel) and transversal adjustment (40 mm of travel).
Adjusting the angle of the upper blade of the rotating cones to +/- 45 °.
Cranks with 0 adjustment (1 division = 0.05 mm, 1 turn = 1 mm).

230 V 50/60 Hz.
Rotation speeds Level 1 = 500 to 2500 / min · Level 2 = 1000 to 5000 / min rpm
Weight 4.5 kg.
Long. 360 mm
Dim. (W x H x H) 360 x 150 x 150 mm.
Built according to protection class 1.
