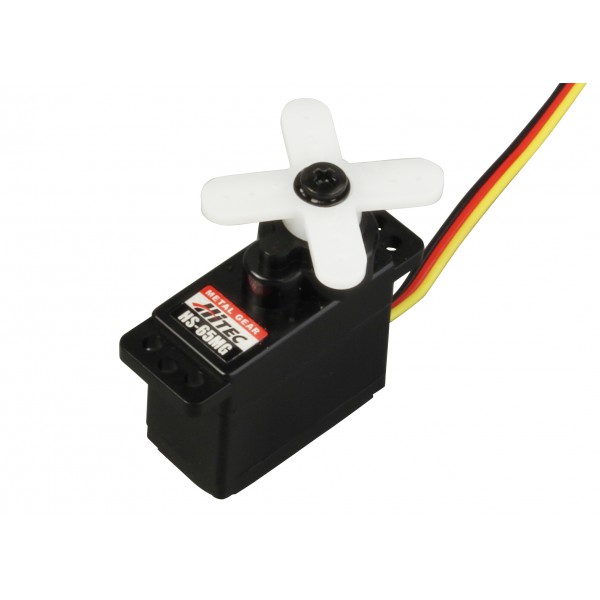

Servo HS-65MG

Small, rugged high-performance servo of <12 mm class

Considered one of the most robust servos in the micro class. The HS-65MG Servo Nano offers unprecedented durability thanks to its exclusive metal gear and with a ball bearing on the output shaft, which is particularly suitable when low clearance and high positional accuracy are important.
The Hitec Servo HS-65MG delivers maximum performance with minimal weight and is using this information also a favorite for industrial applications. The long life and the uniquely designed gearbox making it one of the most reliable and efficient mini servos on the market.

The HS-65MG is ideal for applications in small but sophisticated models, such as park-fly models, small electric helicopters or 1: 18er RC cars.

• Width : 24 mm
• height : 12 mm
• length : 24 mm
• Weight : 0.012 Kg
• servo Type: Micro
• Features: Analog
• motor type servos: brushed
• Transmission: metal
• operating voltage in V: 4.8 to 6.0 V
• operating time s / 60 ° at 4 , 8 volts: 12:14
• positioning time s / 60 ° at 6.0 volts: 12:11
• torque in kg cm at 4.8 volts: 2
• torque in kg cm at 6.0 volts: 2
• teeth: Micro
• bearings: Yes
• Waterproof: No
• flight Yes
• Recommendation Heli: Yes
• Recommended Car: Yes
• Recommended boat: Yes
