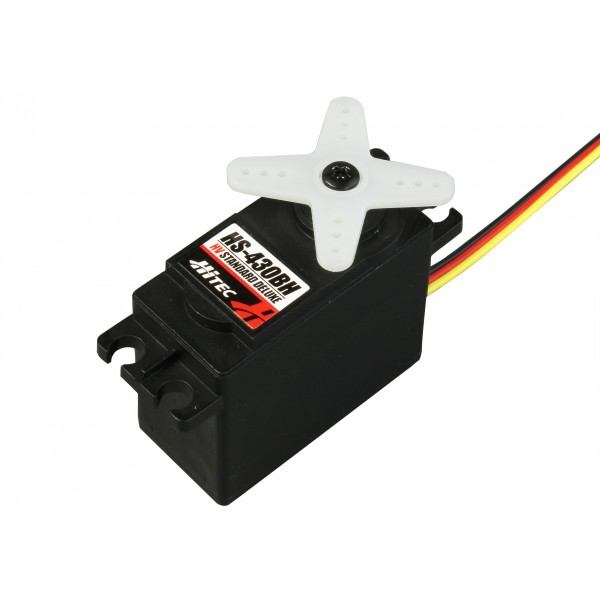

Servo HS-430BH

Inexpensive high-voltage servo of the 20 mm class

Our research department and engineers work tirelessly to develop low-cost and high-quality servo technology.
In the HITEC HS-430BH analog servo this is true to a particular extent, with his three-pole brush motor and elastic nylon gears. This Wide-Voltage -Servo can directly 2-cell Lithium-based batteries (LiFe / Lilo / LiPo) with a nominal voltage of 4.8 - 8.4 V to operate.

The HS-430BH offers unbeatable value for money.

• Long-life potentiometer
• nylon gear
• Two ball bearings

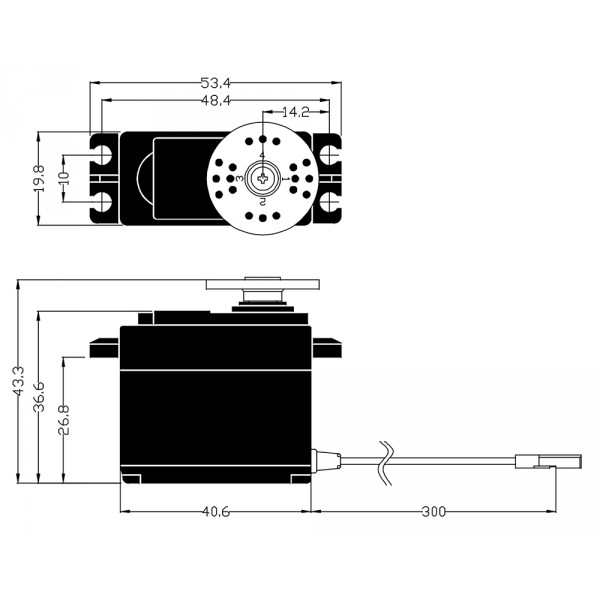

• Width : 20 mm
• height : 37 mm
• length : 41 mm
• Weight : 0.046 Kg
• servo Type: Standard
• Features: Wide-voltage analog
• motor type servos: brushed
• Transmission: Nylon
• operating voltage in V: 4.8 to 8.4 V
• operating time s / 60 ° at 4.8 volts: 0:16
• setting time s / 60 ° at 6.0 volts: 12:14
• torque in kgcm at 4.8 volts: 4
• torque in kgcm at 6.0 volts: 5
• teeth: 24T
• bearings: Yes
• Waterproof: No
• flight Yes
• Recommendation Heli: Yes
• Recommended Car: Yes
• Recommended boat: Yes
