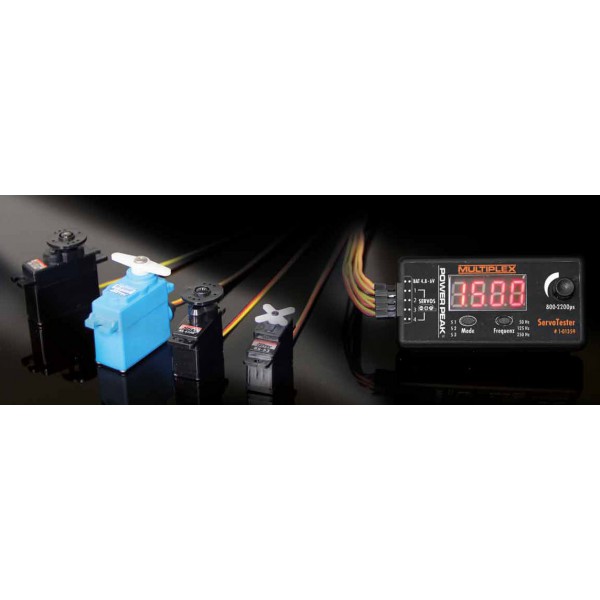

testeur pour servos

• The ideal helper in setting optimum servo centers, no remote control equipment needed
• Small, lightweight, easy to handle and with a digital display
connected • Up to 4 servos
• 3 different modes selectable; Manual adjustment, automatic middle output (1500μs), endurance
• clock frequency for analog and digital servos adjustable
• Betreiebsbereich: 4.8V to 6V, pulse width range: 800-2200 microseconds
• Dimensions: 75x38x27 mm Weight: 27 g
• a staple in every storage case and in each Workshop

• Voltage range : 4.8V-6V
• Pulse range : 800-2200 µs
• 3 fonction modes ('Mode' button) :
  S1 : manual, from 800 to 2200 µs
  S2 : neutral, at 1500 µs
  S3 : Auto move from 800 to 2200 µs, with speed control
• 3 frequencies ('Frequenz' button ) :
  50Hz for analog/classic servos
  125Hz 8µs for digital servos
  250Hz 4µs for digital servos

  Caution : To avoid any damage to a servo, please check you choose the correcty frequency. If analog and digital servos are connected at the same time, please select 50 Hz.
