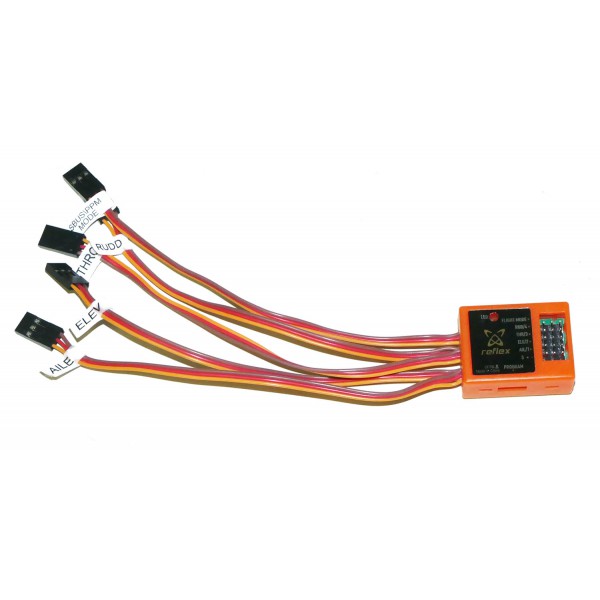

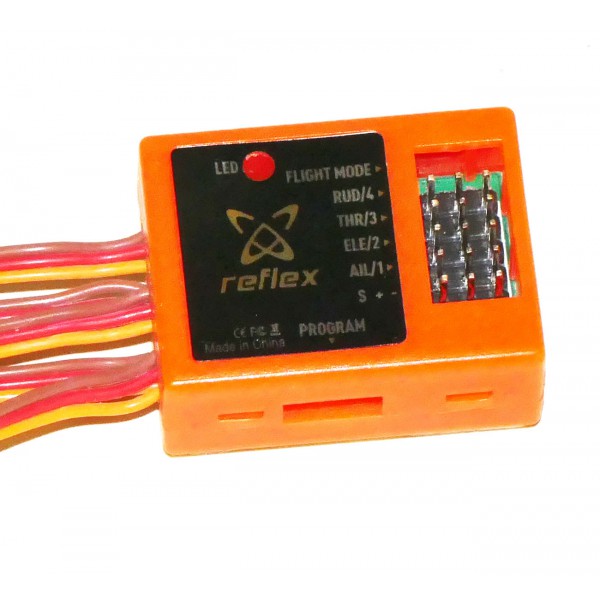

DISC..FMS Reflex V1 Flight Controller (for PA-18)

Utilizes a high-speed 32-bit ARM processor onboard.

Capteurs : Gyroscope 3 axes et accéleromètre 3 axes.

Automatically recognizes SBUS/PPM/PWM systems, compatible with all radio systems with 4 channels or above

Easy operation- the Reflex system is programmed specifically for the aircraft it is connected to. No further programming is needed. The user only needs to connect their receiver to the gyro and setup the aircraft normally.

3 flight modes are available: Stabilized, Optimized or off. This is controlled with a 2 or 3 position switch on the transmitter.

• Stabilized mode :
  • Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released- giving pilots absolute peace of mind.
• Off mode :
  • Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
• Optimized mode :
  • Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets- from gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!
