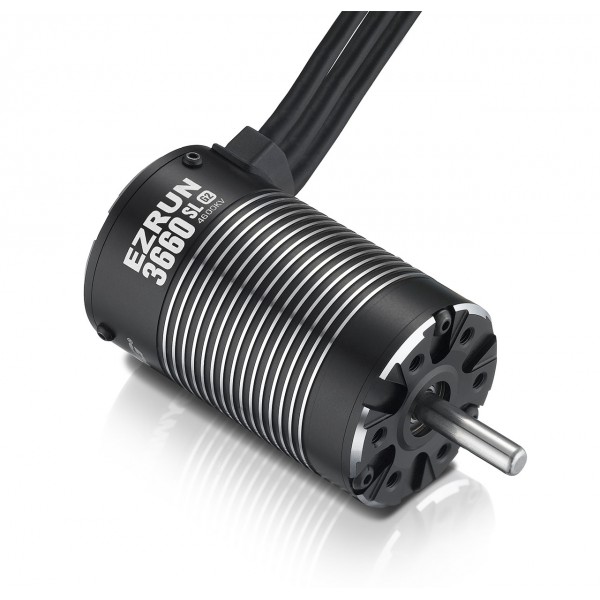

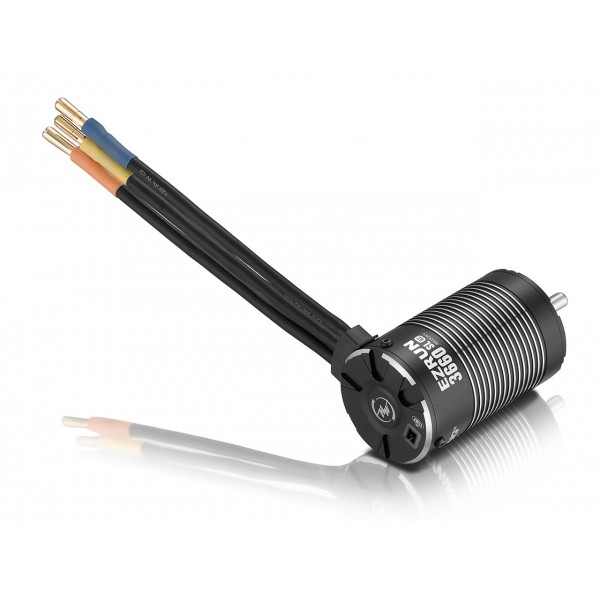

EZRUN-3660-G2 4600KV 35,8x60mm 5,0mm 4 pol 1/10 Ritzel 21T 4

High torque

The 4 pole design will guarantee the motor to produce very large amounts of toque, a mush faster acceleration response and a very stable output of power to the drivetrain.

Low cogging torque

The first motor adopting the innovative 4-pole-8-magnet "staggered pole" rotor, has the extremely low cogging effect and low torque pulsation (it's reduced by 85% when comparing with conventional 1/10th scale 4-pole motors).

Motor thermal protection

When pairing the EzRun 3660 G2 with a Hobbywing EzRun MAX10-SCT or MAX10 ESC, the built-in temperature sensor and sensor port at the load end (for connecting to ESC) will make the motor thermal protection available to protect the motor from damage due to overheat.

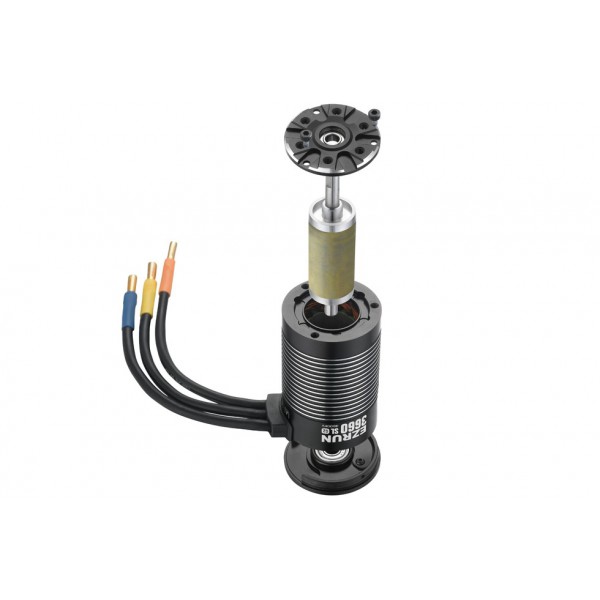

Excellent structure

The O-ring seal fitted between the front end bell and motor case isolates screw holes form inner parts to prevent liquid or dust from getting inside and protect the motor from damage. The special deesign implemented bythe motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.

High efficiency

Hobbywing's temperature control technology has been designed to protect the motor from being damaged by heat, thus less heat, more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90%, a leading level in the RC world.

Quality materials and excellent design

The use of double insulated windings (240°C R-leveled), high intensity adhesive (340°C), Japanese bearings and silicon steel sheets guarantees users the outstanding performance and super durability. The wheel hub design of the front and rear end bells reduces the motor weight.

Compatible with the EzRun MAX10-SCT and MAX10 ESC

When pairing the EzRun 3660 G2 motor with a Hobbywing EzRun MAX10-SCT or MAX10 ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band.
