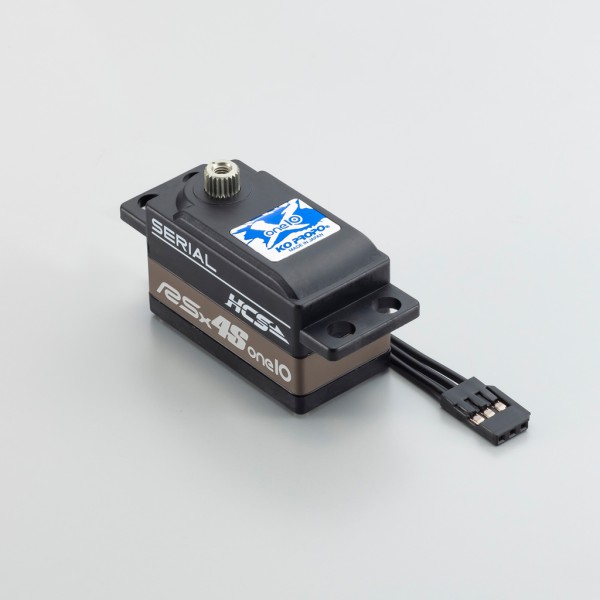

RSx4S-One 10X Servo

The KO PROPO RSx4S-One 10X low profile servo for 1/10 EP On Road, 1/10 EP Off Road and 1/10 GP On Road.

Serial servo that inherits the performance of "Flection"

This product is a low-profile servo equipped with a coreless motor. The motor, gears, and other mechanical parts have been inherited from the popular "Flection" for its ease of running. The weight is reduced by the plastic upper case. As the 4S series, it has evolved to support serial communication for super fast response performance. In addition, it now supports REAL TIME ICS, which allows ICS settings to be made from the transmitter.

A supple and powerful driving feel that touches the road!

It inherits the same driving feel that was popular with the Flection. The servo is not only based on the standard specifications of "Torque" and "Speed", but also focuses on "Inertia" to provide a smooth turning performance with less stalling while firmly gripping the road surface. With the delicate operation and enhanced torque of the newly developed core-less motor, we have acquired an unprecedented handling performance.

Adopt the new generation coreless motor proven in Flection!

A coreless motor that has demonstrated sufficient performance in Flection is used. The load on the ESC's BEC circuit is lightened, and the probability of the servo dropping out of power due to current consumption is drastically reduced. In order to take advantage of the motor's characteristics, the electrical circuit has been completely redesigned through repeated prototyping and testing.

- Torque: 12.5Kg-cm Speed: 0.09sec/60deg(@7.4V)
- Torque: 11.8Kg-cm Speed: 0.10sec/60deg(@6.0V)

- Dimensions: 40.5×26×21mm (Low Profile)
- Weight: 50.5g
- Operating voltage: 6.0～7.4V (Lipo,Life,Ni-MH)
- The hard alumite aluminum gear
- Core-less motor
- Dual ball bearings
- The hard servo gear shaft
- The aluminum heat sink middle case
- Black cable
- Gold plated connector
- Serial Compatible
- HCS Compatible
