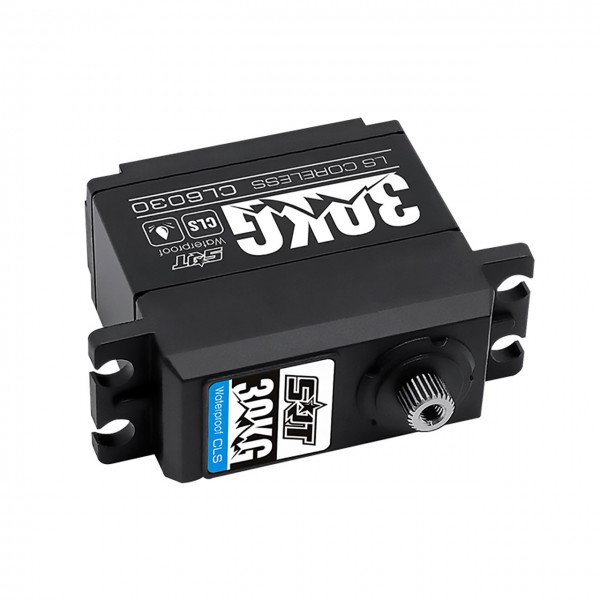

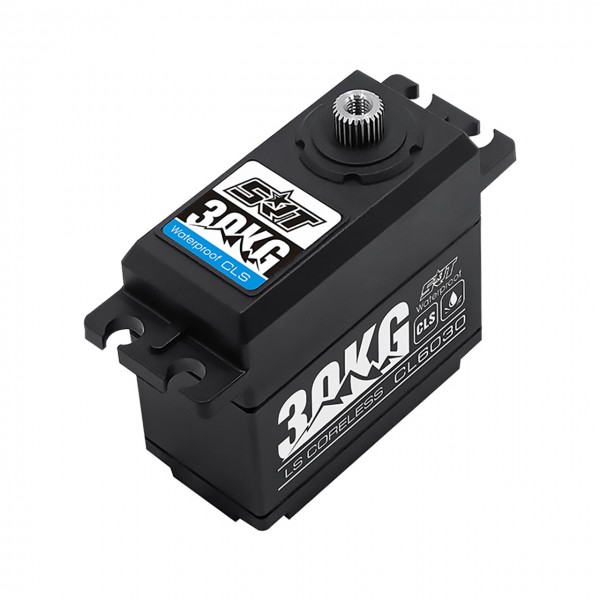

Servo Coreless HV High torque Waterproof 30.0kg/0.11sec @7.4V

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

All of SRT servos  are available to be customized for easy installation by OEM order.

• Servo for 1/10 Crawlers

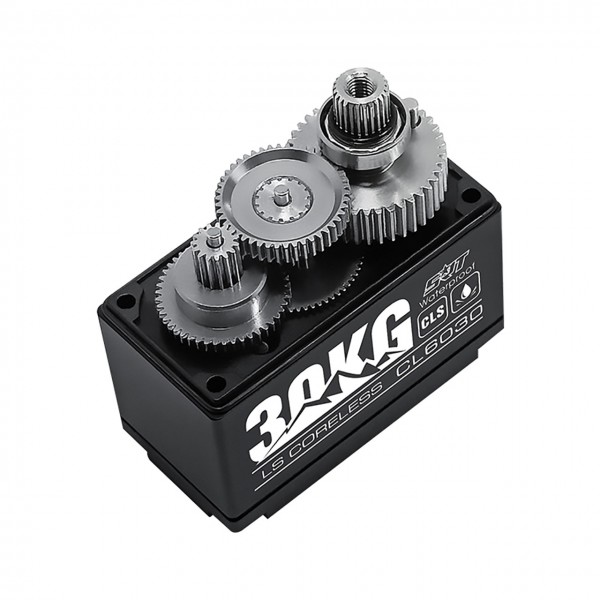

• Titanium & Steel gears for precision and durability
• Intermediate aluminum case
• NMB dual main bearings
• Superior waterproof
• 25T output shaft
• 1-Year Limited Warranty

• • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc4.8-7.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (4.8v): 0.13 sec/60 degrees at no load
  • operating speed (6.0v): 0.12 sec/60 degrees at no load
  • operating speed (7.4v): 0.11 sec/60 degrees at no load
  • stall torque (4.8v): 19.0kg.cm (263.9 oz/in)
  • stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
  • stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
  • potentiometer drive: direct drive

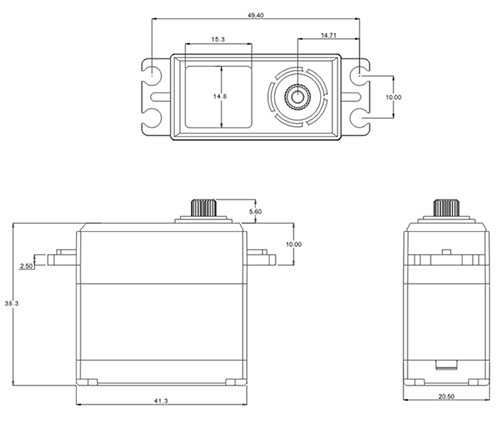

  • dimensions: 41.3x20.5x38.3 mm /1.63x0.8x1.51 in
  • weight: 69.0g (2.43 oz)
  • connector wire length: jr 300 mm
