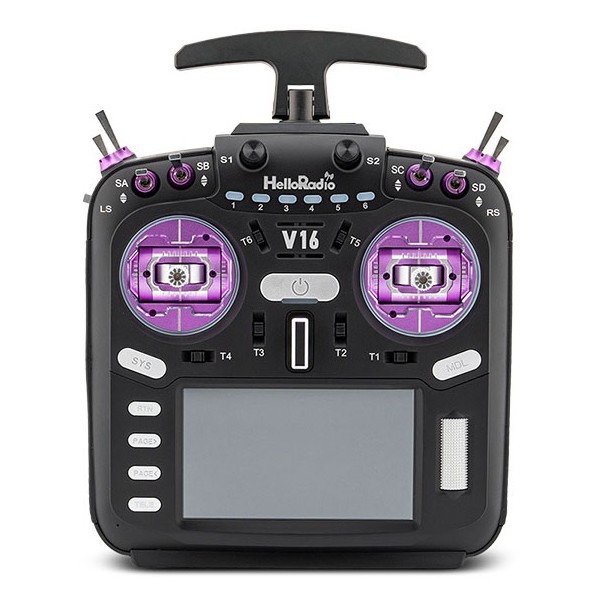

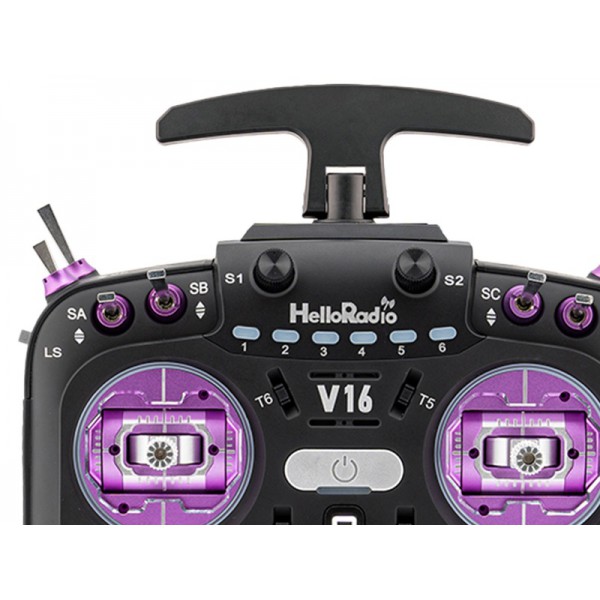

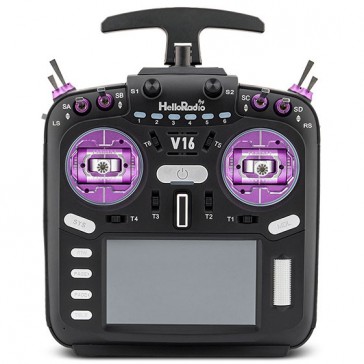

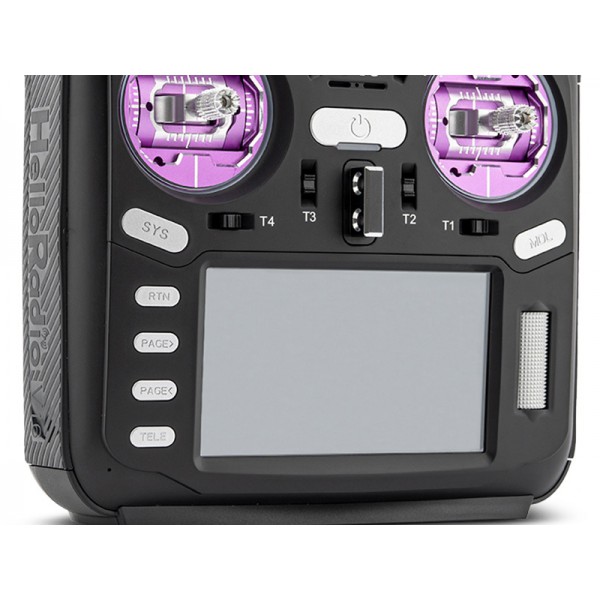

V16 MAX 2,4GHz 4in1 LBT Radio (Multimode - M2) - Purple

The HelloRadio V16 MAX remote control combines cutting-edge technology with sophisticated design, giving you complete control. Equipped with the open-source EdgeTX system, an LED display, and an innovative AI voice assistant, it opens up entirely new possibilities. Intelligent safety features, flexible module compatibility, and precise motion control ensure you maintain complete control at all times. Another highlight is that the LEDs around the gimbals can be programmed in a variety of colors.

EdgeTX open source system

The V16 MAX comes pre-installed with the EdgeTX open-source firmware. EdgeTX is an open-source firmware for remote control transmitters used in RC applications such as model airplanes, drones, model ships, and model vehicles. It is highly customizable and allows users to configure their transmitters and adjust the settings to their individual preferences and specific needs.
EdgeTX supports a wide variety of RC protocols, making it a popular choice in the RC community. Its flexible and powerful features make it a versatile tool for advanced users who want to take their RC activities to the next level.

4N1 Radio System

The V16 MAX is offered with an internal 4N1 RF module. The 4N1 multi-protocol radio system includes the NRF24L01, CC2500, A7105, and CYRF6936 RF chips. It is compatible with HoTT, Futaba SFHSS, FrSky, DSM/DSMX, Walkera Devo, FlySky, AFHDS2A, Hubsan, HiSky, Syma, and ASSAN protocols.

The 4N1 LBT version (Europe) is limited to LBT-compliant protocols: HoTT, FrSKY X/X2 LBT, and DSMX.

T-Antenna:

This newly developed, patented design ensures excellent signal quality and increased range. It can also be folded out to serve as a carrying handle.

AI voice assistant

The V16 PRO is equipped with an AI voice recognition function that provides a unique interaction experience with the transmitter through customized voice input supported by the EdgeTX software.

Intelligent safety functions

The V16 PRO is equipped with three high-precision voltage and current sensor measurement units with a measurement accuracy of 0.2 %. It can monitor the operating status of the system in real time, as well as the working status of the transmitter battery, the main control system, the built-in radio frequency module and the external radio frequency module. When the system detects abnormal current and voltage signals, it automatically protects the system and radio frequency modules while issuing warnings. It prevents damage caused by moisture short circuits, overvoltage and overcurrent and avoids flying accidents in advance.

Motion Control

The V16 PRO is equipped with 3-axis acceleration and 3-axis gyroscope sensors. This means that control functions can be controlled with the movement - i.e. the change in position - of the transmitter. The motion control function is activated via the AI voice assistant and deactivated again by moving the gimbal.

Programmable gimbal LED

The two LED rings consist of 16 colored LEDs. The flashing mode and the colors of the gimbal LEDs can be adjusted using a simple selection program. Switches can then be used to switch between different modes.

HG01 CNC Gimbal

The HG01 control units are fully CNC-machined and feature four ball bearings for maximum precision. The preload and travel adjustments are accessible from the front, allowing for easy fine-tuning. The HG01 control units are equipped with a Hall sensor.

V16 Versions :

• Open-source EdgeTX system
• AI voice assistant and voice control (say "Hello Radio" to activate the voice assistant)
• Equipped with three voltage and current measuring units with an accuracy of +-0.2%, which can independently measure the voltage of a single battery cell of the transmitter and monitor the charging voltage and current in real time.
• Motion control for controlling functions by moving the transmitter
• Programmable gimbal LED consisting of 16 colored LEDs
• CNC-milled and four-ball bearing stick units for highest precision
• Convenient 4.3-inch IPS touch display
• Multimode control arrangement – ​​selection between Mode 1, 2, 3, or 4
• Foldable T-antenna for excellent signal quality
• Mode switches 1 to 6 can be defined as desired
• Internal 4in1 RF module
• Compatible with external modules with a Micro-JR slot
• Dual serial hardware port for communication with the external RF module
• Optimized LCD circuit design that frees up memory and CPU resources
• Supports ESP32-C3-MINI and XIAO ESP32-C3 Bluetooth modules, thus offering more possibilities for future applications
• Reverse control circuit to support multiple types of external RF modules
• Charging circuit automatically stops charging if an overvoltage is detected in the battery cells
• Protection circuit to prevent damage from reversed polarity connection Power supply
• USB-C port for connecting to a PC
• 3.5mm jack for connecting a teacher/student cable
• 3.5mm jack for connecting headphones
• USB-C port for connecting a charging cable
• SD card slot with a 512MB Micro SD card
• Serial ports for flashing the firmware

• Dimensions: 286*128*182 mm
• Weight: 825g (without battery)
• Transmission frequency: 2.400 GHz-2.480 GHz
• Internal RF options: 4in1
• Transmission power: LBT max. 100 mW
• Supported protocols: Module-dependent
• Operating current: 450mA
• Operating voltage: 6.6-8.4 V DC
• Radio firmware: EdgeTX
• Channels: 16 channels
• Display: 4.3-inch IPS full-color touch panel with a resolution of 480 x 272 pixels
• Sensors: Hall
• Module slot: Compatible with the following micro JR modules: Multi-protocol modules, Ex-pressLRS, Ghost, TBS Crossfire, TBS Tracer etc.
• Update method: Supports USB-C for online update / SD card for offline update
• Battery slot: Standard 18650 battery (2 pieces) or HelloRadio TX battery pack

• 1 x V16 MAX
• 1 x transmitter strap
• 1 x USB-C cable
• 1 x 18650 battery compartment
• 1 x 1.5 mm hex key
• 4 x springs with less tension
• 1 x quick start guide
• 1 x 1.5 mm hex key
