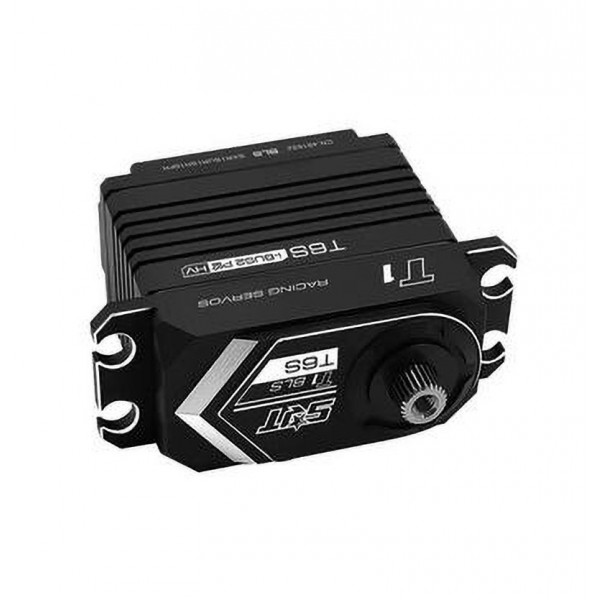

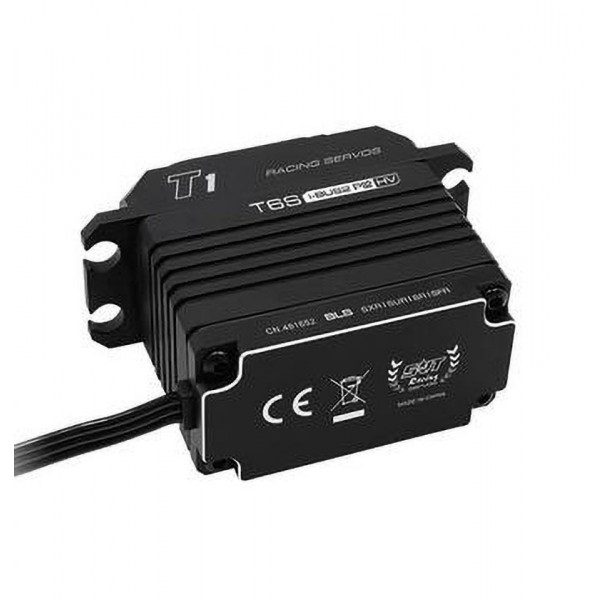

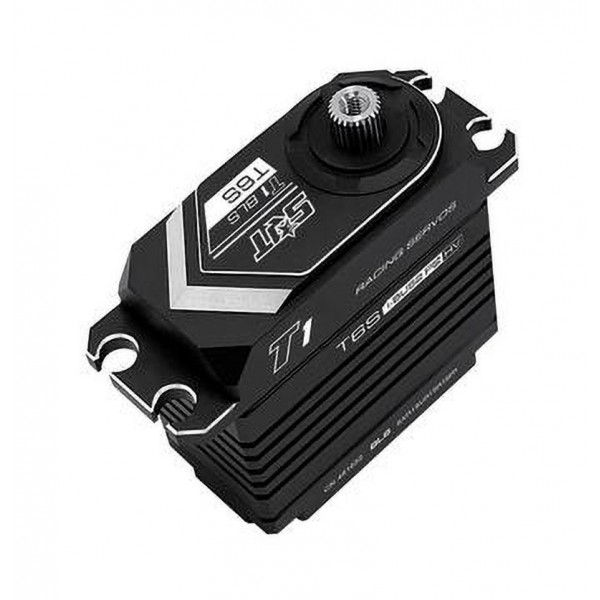

Servo T6S Brushless HV CNC aluminium case 48.0kg/0.09sec @7.4V

Servo for 1/10 Crawler

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• Programmable High torque Brushless servo
• Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
• 25T output shaft
• 2 μsec Dead Band
• 1-Year Limited Warranty

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.092 sec/60 degrees at no load
• operating speed (7.4v): 0.090 sec/60 degrees at no load
• operating speed (8.4v): 0.085 sec/60 degrees at no load
• stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
• stall torque (7.4v): 48.0kg.cm (666.6 oz/in)
• stall torque (8.4v): 58.0kg.cm (805.5 oz/in)
• potentiometer drive: direct drive

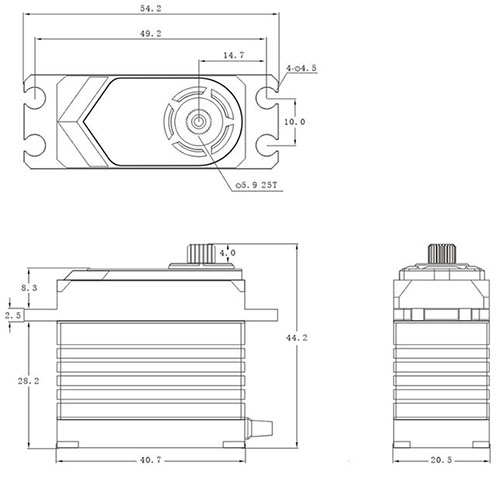

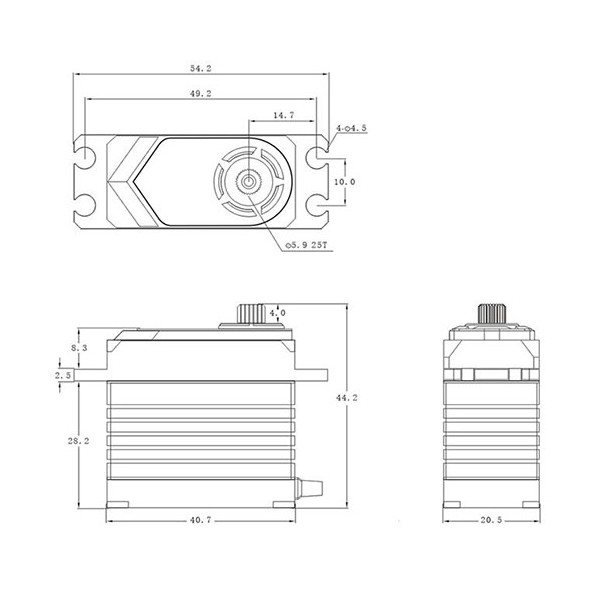

• dimensions: 40.7x20.5x39.0 mm /1.60x0.81x1.54 in
• weight: 83.0g (2.93 oz)
• connector wire length: jr 300 mm
