SkyRC

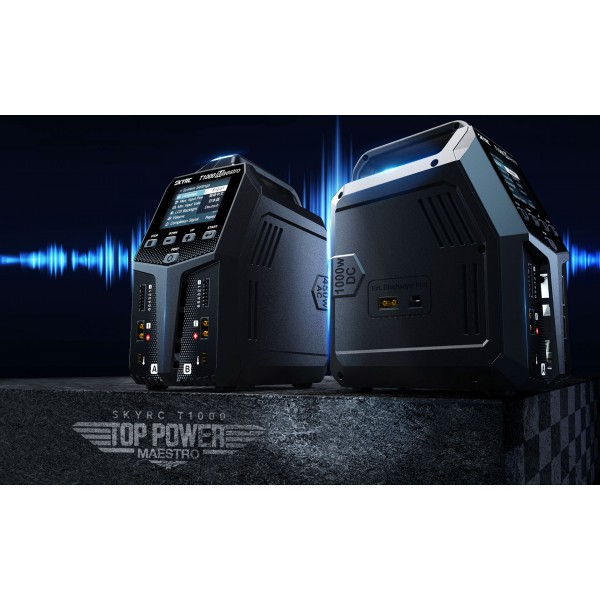

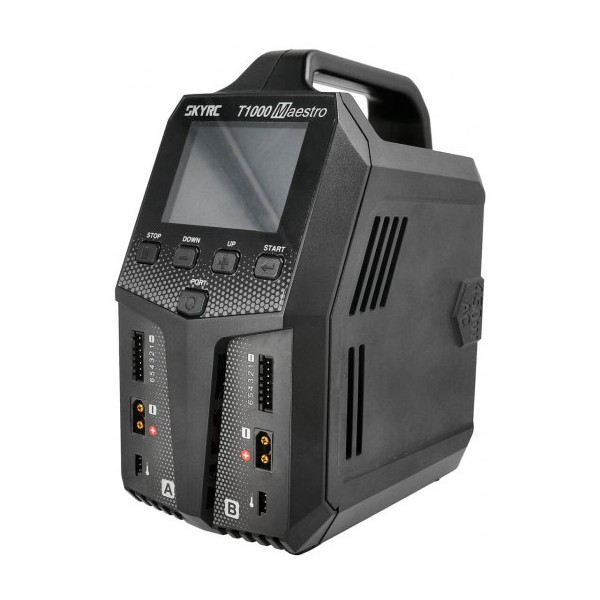

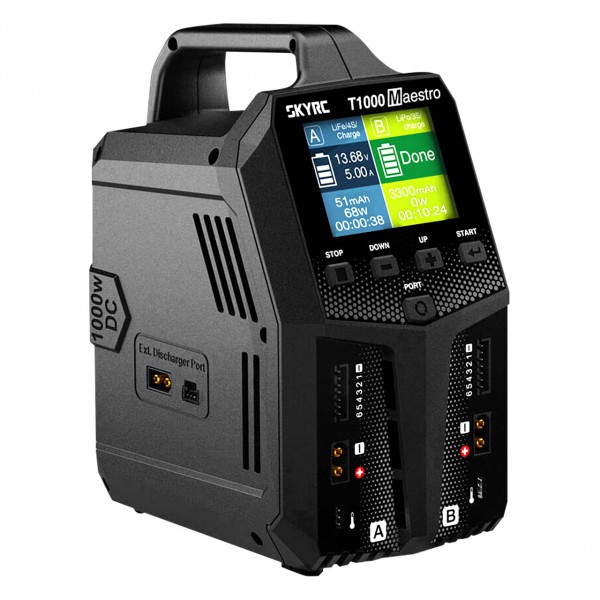

T1000 Maestro AC/DC Duo charger (AC450W DC 1000W)

Push your next RC racing trip beyond the edge with SkyRC T1000!
The Arm Cortex-M4 chip takes our most versatile, dual output T1000 into another dimension with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM single precision instructions and data types.

Meer details

SkyRC

SKY100182

Op voorraad Op voorraad in onze winkel. Levering binnen 24/48 werkuren.

 Verzendkosten vanaf 6.99€
of gratis afhaling in de winkel. .

225,99 €
*

Meer informatie

32 -BIT Core Processor ; 1 To 240 Interrupts, plus NMI ; 12 Cycle interrupt latency

Multiplied by proprietary Hyperboost

Thanks to the 200 MHz ARM Microcontroller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.

20A per port

Dual ports work independently to charge two battery packs efficiently and simultaneously. RC hobbyists can flexibly choose AC or DC input according to the scenarios.

In AC mode, the charging power is up to 450W, while the performance is even more powerful, up to 1000W in DC mode. Whether you are a beginner or an RC guru engaging in racing, it is the charger to push the limits of what is possible!

Smart power distribution

When a single port works, the T1000 will be pumping full power into that port! The charging power is dynamically and intelligently distributed in the circumstance that two ports work at the same time. Whenever either port finishes working, the other port will fully charge at full power. The total power is always used intelligently and efficiently! Charging is so flexible

Digital power supply

T1000 is not only professional in charging but also can act as a digital power supply.
After clicks on the menu, T1000 is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-15A current. Short circuit, Overload, and Reverse polarity protection are all included!

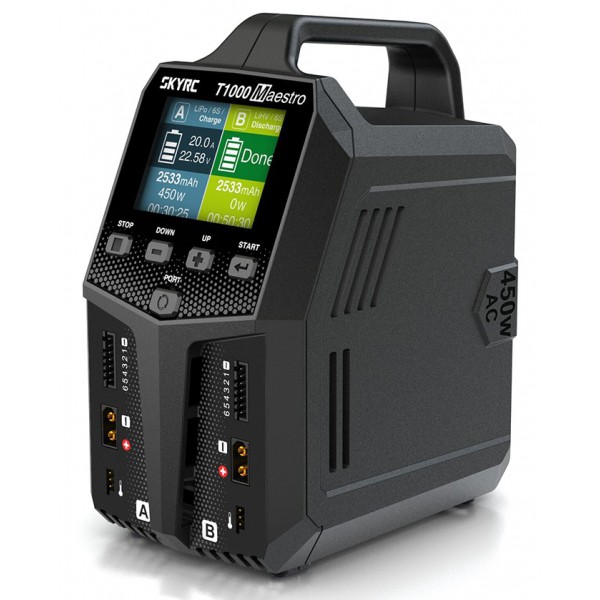

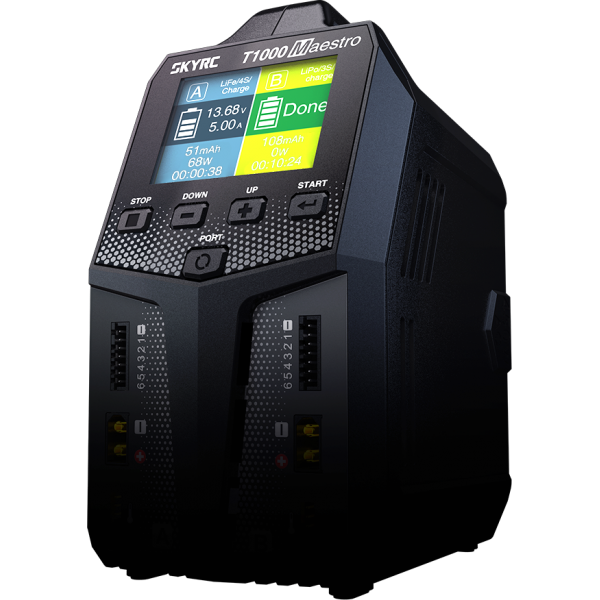

Color X display & intuitive UX

Discover a new ColorX interface introduced by T1000 based on simple and textured visuals! The tailor-designed light cyan and green color scheme is for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI. Charging doesn't have to be boring, and neither does life!

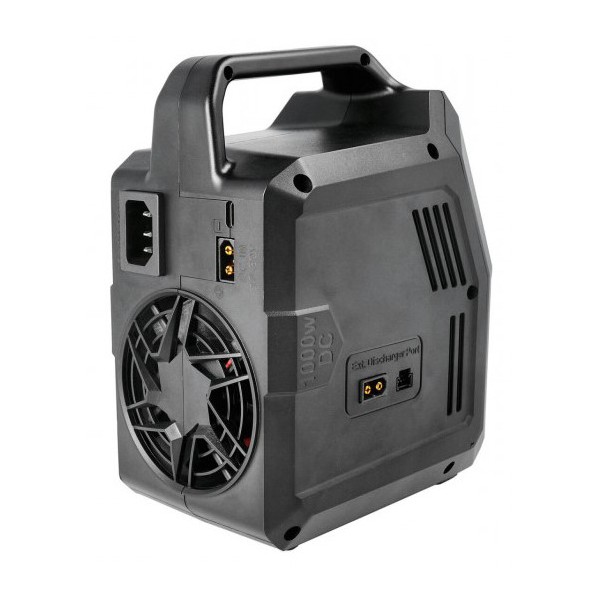

Smart thermal fan

Within the sleek enclosure lies a groundbreaking thermal system designed to let Arm Cortex-M4 fly through heavy workloads at screaming-fast speeds — and stay whisper quiet. The fan will adjust the speed accordingly and dissipate heat more effectively according to the different power usage.


Stunningly sleek

With the classic, minimal, and sleek vertical tower design, T1000 frees up more bench space for RC hobbyists to tweak gadgets by taking the footprints of a pair of battery packs. Sleek design serves your charging and delights your charging!

The ergonomic handle makes it easy to store, carry, and travel with.


Up to 35 A charging current!

By using a parallele charge lead (sold separately) SKY600023-19 or SKY600023-20, you can connect the two outputs of the charger and use the parallel charging mode which allows you to select a charging current between 20 and 35 A!

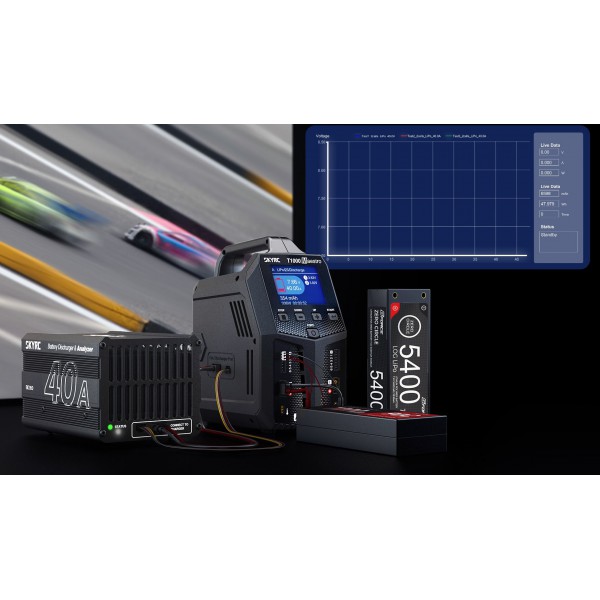

Fast discharge and battery analysis
By adding the BD350 discharger (sold separately), you will have a perfect tool for high intensity discharges (up to 40 A / 350 W) of your packs and for analyzing them in order to choose the most efficient ones for racing . You will visualize the discharge curves on your PC thanks to the free SkyRC Charger Master 3 software.
Charge your USB devices
With the PCH-150 USB charging hub (sold separately), easily charge your mobile devices, drones, etc.
2 x 18W USBC sockets, 1 x 100W USBC socket, 1 x 18W USBA socket.
Connects to port B of the charger.

Specificaties

Input Voltage

AC

100-240V (50/60Hz)

DC

10-30V

Input current



35A max

Charge power

AC

450W max

DC

1000W max



Discharge power

Main port

10W

Balance port

37W max

External discharge

350W max



Charge current

LiPo/LiFe/LiIon/LiH V/NiM H/NiCd/Pb

0.1-20.OA

parallel

20.0-35.OA



Discharge current

LiPo/LiFe/LiIon/LiH V/NiM H/NiCd/Pb

0.1-2.OA

External discharge
*Working with external discharger BD350
which can be purchased separately.

0.1-40.OA

Balance current

LiPo/LiFe/LiIon/LiH V

1.5A max



Battery type

LiPo/LiFe/LiIon/LiH V

1-6S

NiMH/NiCd

4-15S

Pb

3S/6S/12S





Operation

LiPo/LiFe/LiIon/LiH V

Balance, Charge, Discharge, Storage, Parallel

NiMH/NiCd

Charge, Cycle, Re-peak, Discharge

Pb

Normal, AGM charge, Cold charge, Discharge

DC Output

Voltage

5-27V

current

1.0-15.0A

Size

L*W*H

190.3*153.5*100 mm

Weight



1370 gr

Productgegevens

  • Fabrikant : SkyRC
  • Aandrijving : electrisch (Brushed)

Samenstelling van de kit

  • T1000 unit
  • AC power cord
  • User manual
