Duo D100 v2 AC/DC charger (AC max 100w total - DC 2x100w)

SkyRC Duo D100 v2 AC/DC charger, for 1-6S LiPo/LiFe/LiIon/LiHV, 1-15S NiMH/NiCd, or 2-20V Pb batteries.

More details

Manufacturer: SkyRC

Reference: SKY100131

Stock status: In stock at our shop Shipping within 24/48 working hours.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 119,99 €

124,99 €

-4%

Quantity Maximum quantity reached.

More info
Key features
Specifications
Data sheet
Composition Kit
Videos
Accessories

More info

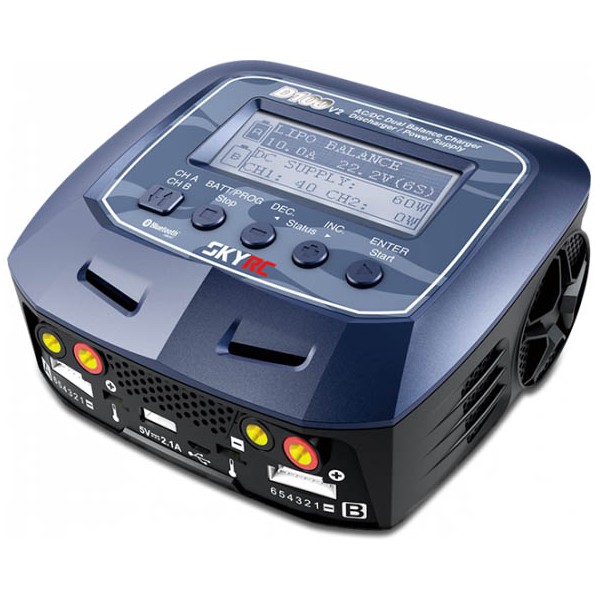

SkyRC D100 v2 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB)simultaneously. Capable of operating as a power supply with the maximum output of 100W helps the hobbyists to power the DC equiments. With its unprecedented function of voice guide, even a freshman can use this charger without any hurdles. Additional feature including our "SCAN TO GO" either.

Voice Guide

Purposes to make the charger more user-friendly and customizable. A speaker supported English and Chinese separately have been included in the left side of the charger that can reduce the times for misoperation

Power Distribution

The charger supports power distribution between channel A / channel B and PSU under the total power of 100W in AC mode.

DC Power Supply

The ability of supplying 100W/13.8V DC power dramatically expands its usage scope, which is really an amazing partner for hobbyists to power the DC equipments.

Twin-channel Charger

SkyRC D100 v2 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically charge 2 batteries at once.

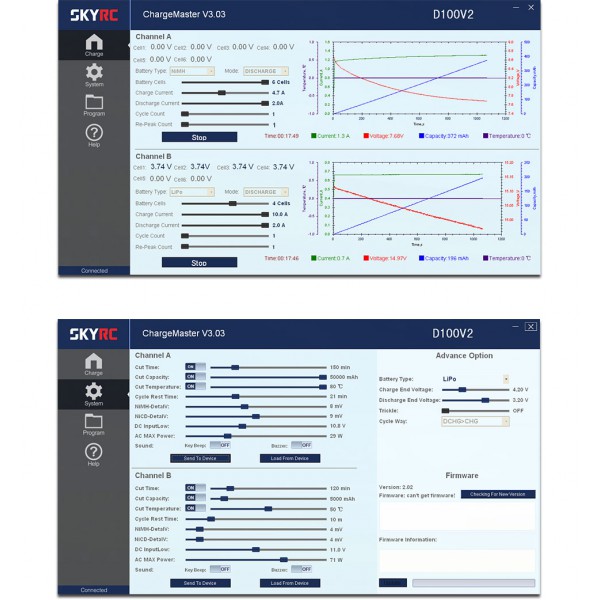

Charge Master

The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

LiHV mode available

The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.

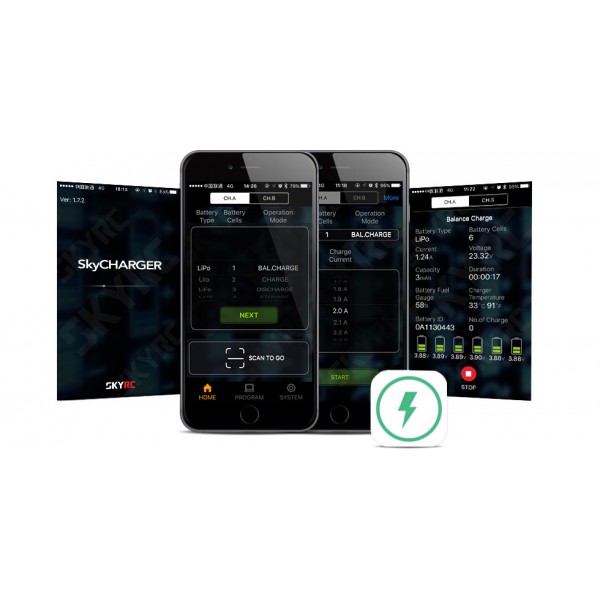

SkyCharger App

The Bluetooth 4.0 connectivity allows the user to remote control and monitor the D100 v2 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. D100 v2 and your device will establish Bluetooth connection automatically.

SCAN TO GO

A very unique feature of D100 v2 is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery.

Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.

Charge Master

The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

Key features

Voice guide
DC Power Supply
Power distribution management
Scan to Go
Lithium Battery balancer
Discharge feature
Program Data Store/Load
Battery Meter
Battery resistance meter
Terminal voltage control (TVC)
PC Control
Maximum safety

Specifications

AC Input Voltage	100-240V
DC Input Voltage	11-18V
Charge Wattage	AC 100W(Support Power Distribution)
Charge Wattage	DC 100Wx2
Discharge Wattage	10Wx2
Charge Current	(0.1A-10.0A) x2
Discharge Current	(0.1A-2.0A) x2
DC Power Supply Output	13.8V / Max. 100W
Current Drian for Balancing Port	300mA/cell
Trickle Charging Current	50mA-300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count	1-6S
NiMH/NiCd Battery Cell Count	1-15S
Pb Battery Voltage	2-20V
Size :	153 x 140 x 67 mm
Weight	668 g

Data sheet

Manufacturer : SkyRC

Composition Kit

SKYRC D100v2 Charger
XH Adaptor X 2
Charging Cable X 2

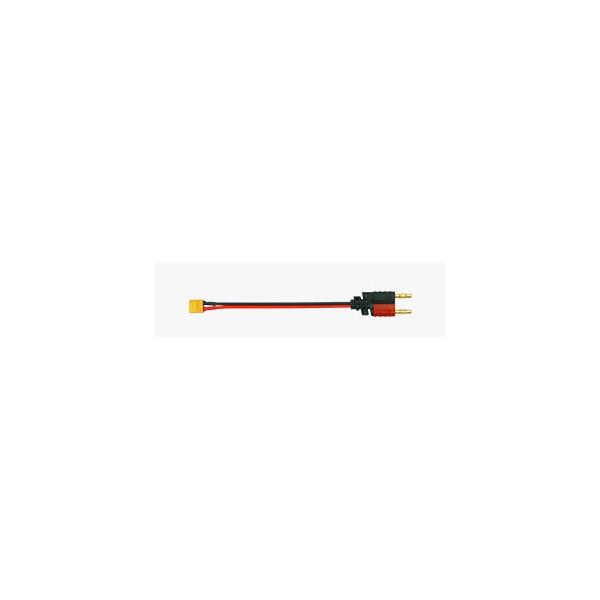

Banana connectors with XT60 connector Charging Cable X 2
Power Cord

Videos

Accessories

Multi Balance Board Adapter 2-6s (HP/PQ, TP/FP, XH, EH) SKY600056	In stock at our store	14,89 €
Power distributor with banana connector (Max 10A + USB 5V 2,1A) SKY600114-01	In stock at our store	15,99 €
Power distributor with XT60 connector (Max 10A + USB 5V 2,1A) SKY600114-03	In stock at our store	15,99 €
Power distributor with DC 2,5 (Max 10A + USB 5V 2,1A) SKY600114-02	Last item in stock at our store	15,99 €
