Hitec RCD

Servo D941TW Full Metal Case

Hitec Servo D941TW Full Metal Case

More details

Hitec RCD

MPX116941

In stock at the supplier In stock at our supplier. Shipment in 15 to 30 days, without warranty.

 Shippingcosts from 6.99€
or collect for free at the shop. .

159,90 €


Notify me when available

More info

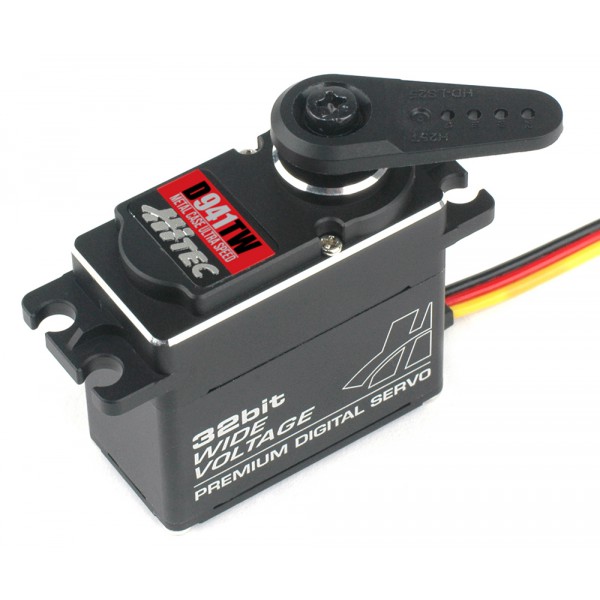

Ultra premium digital servo of the 20 mm class

The ultrafast D941TW servos of HITEC D series in complete aluminum housing, and offer the highest resolution available on the market servo travel. Finest response and programming options are realized thanks to the 32-bit MCU and 12-bit ADC technology.
Wide-Voltage servos can directly 2-cell Lithium-based batteries (LiFe / Lilo / LiPo) with a nominal voltage of 4.8 - 8.4 V to operate.
The D941TW Digital Servo is fully programmable and offers unprecedented durability thanks to its exclusive full-titanium gearbox with two ball bearings on the output shaft, which is particularly suitable when low clearance and high positional accuracy are important.
The long life is due to the uniquely designed gear and the part-aluminum housing that provides optimum heat dissipation.

Key features

Features:
• Programmable
• Digital MOS FET amplifier
• High speed adjusting
• High force
• High holding power
• Titanium gear
• 2 ball bearing
• part aluminum housing
• 25 splines for Servohorn

Programmable functions:
• setting the end point (0 ° -180 °), neutral
• adjusting the direction of rotation (clockwise / anti-clockwise)
• Setting the backlash
• adjusting the speed (slower)
• Setting the soft start
• setting the fail-safe function
• setting the overload protection
• data save or load
• reset to factory settings

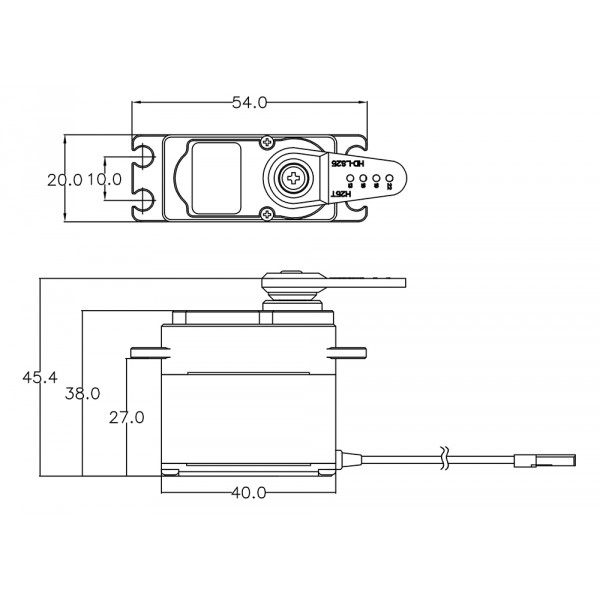

Specifications

  • Width : 20 mm
  • height : 38 mm
  • length : 40 mm
  • Weight : 0.08 kg
  • servo Type: Standard
  • Features: Wide Voltage Digital
  • Engine type servos: coreless
  • Transmission: titanium
  • operating voltage in V: 4.8 to 8.4 V
  • operating time s / 60 ° at 4.8 volts: 0.11
  • actuating time s / 60 ° at 6.0 volts: 0.08
  • actuating time s / 60 ° at 7.4 volts: 0.07
  • torque kgcm in at 4.8 volts: 10
  • torque at 6.0 kgcm voltage: 13
  • torque in kgcm at 7.4 volts: 16
  • teeth: 25T
  • Bearings: Yes
  • Waterproof: No
  • Short description Servo: ULTRASPEED 32 BIT PROGRAMMABLE & HIGH RESPONSE
  • flight Yes
  • Recommendation Heli: Yes
  • Recommended Car: Yes
  • Recommended boat: Yes

Data sheet

  • Manufacturer : Hitec RCD
