>Electronics & Motors>Electronics>Chargers>PC1500 AC Charger (12S-14S LiPo/LiHV - 1500w)
SkyRC

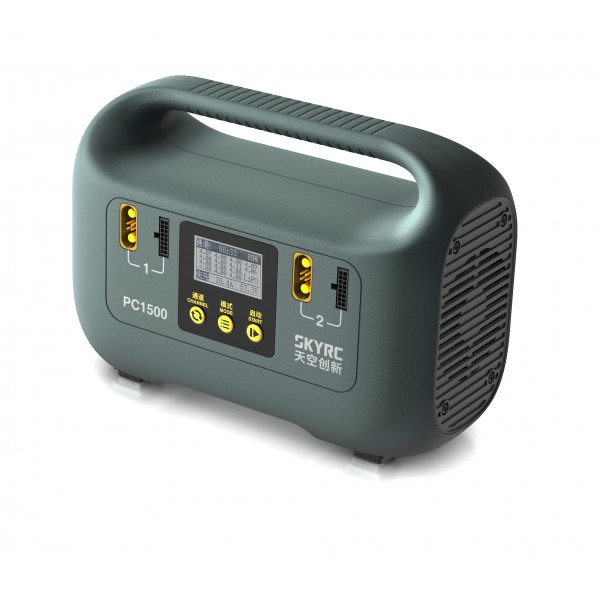

PC1500 AC Charger (12S-14S LiPo/LiHV - 1500w)

SkyRC PC1500 25A 12/14S charger

More details

SkyRC

SKY100173

Out of stock Can not be ordered because not in stock at our supplier. Delivery time unknown

 Shippingcosts from 6.99€
or collect for free at the shop. .

500,99 €
*

Notify me when available

More info

PC1500 is a smart charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It can connect two batteries at the same time. The charger's maximum output power is up to 1500W, with three modes of Fast(Fast Charge)/Charge(Slow Charge)/Storage. Batteries with customized CAN communication can recognize the charger instantly. Charging operation is convenient and straightforward, and better user experience is delivered.

Intuitive Operation Interface
Routine charging is made easy by the simple and intuitive interface with the operation procedure simplified. Users only need to select Fast(Fast Charge)/Charge(Slow Charge)/Storage and press the Start button to get the job started.

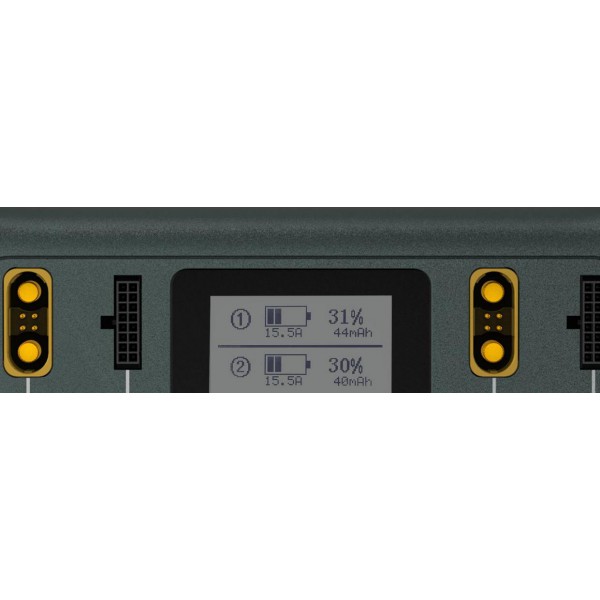

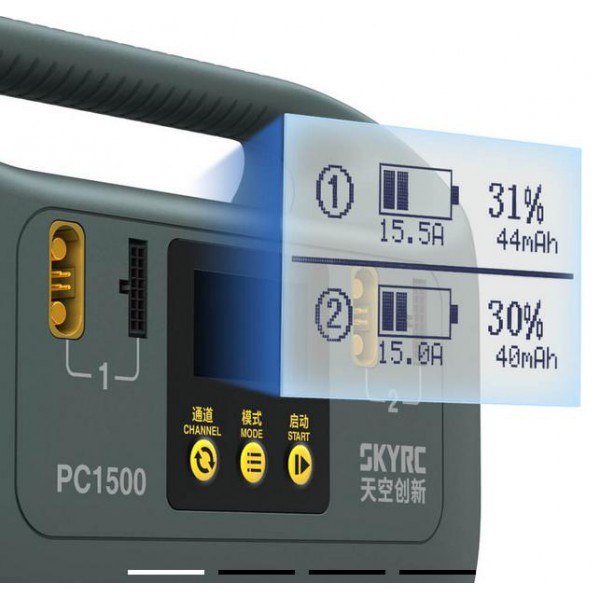

LCD Display
Real-time charging data at a glance!
During the charging process, the display screen displays charging time, battery power percentage, and every single cell's voltage in real-time.

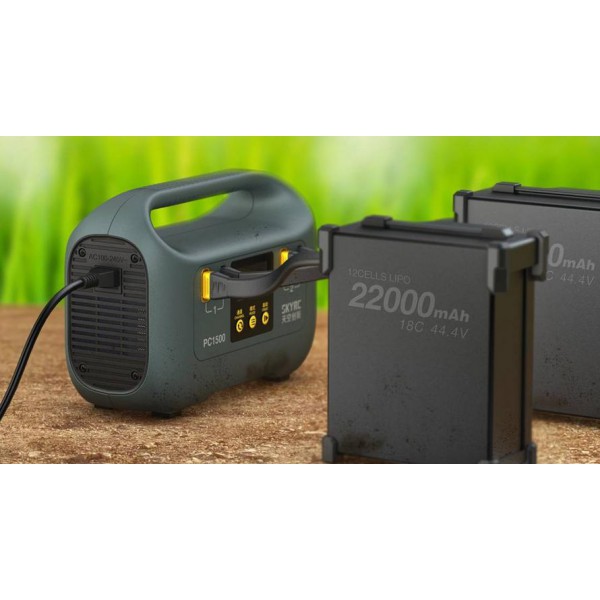

High Performance with Dual Channels
With high-power and dual channels, two batteries can be charged simultaneously in slow charging mode at a maximum charging power of 1500W.
Go parallel, one step faster!

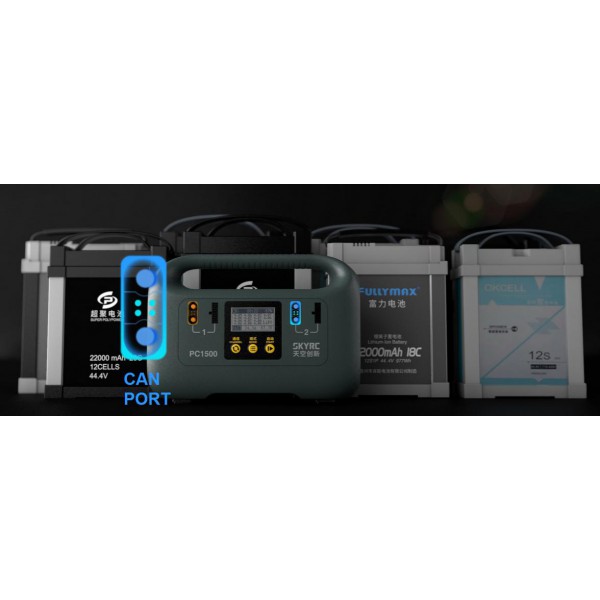

Compatibility of CAN
PC1500 charger is with built-industry CAN Bus communication. Smart batteries and lithium batteries with balance ports can be charged.
Pre-charge function to extend battery life
The charger can detect the battery pack's overall voltage through the balance port and intelligently adjust the charging current according to the battery voltage.
Optimal Design through the Convection Air Duct
The wing blade design reduces noise, provides high-wind performance, and significantly improves heat dissipation efficiency.

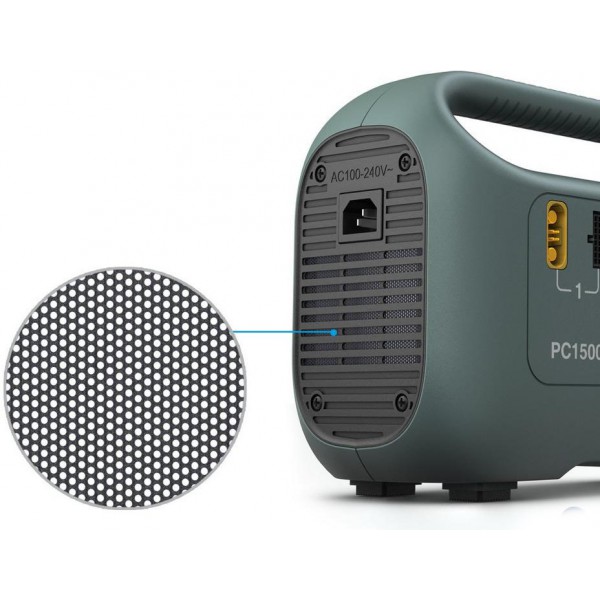

High-quality Ventilator, effectively filtering dust and sediment
Ventilators are mounted at the end of the fan convection. They are detachable design, easy to remove and clean: dust, sand, and other harmful substances are effectively filtered.
Compact but Powerful
PC1500 is highly optimized in structure, pursuing a better volume-to-power ratio. The size is compact, but its function is powerful and easy to carry.

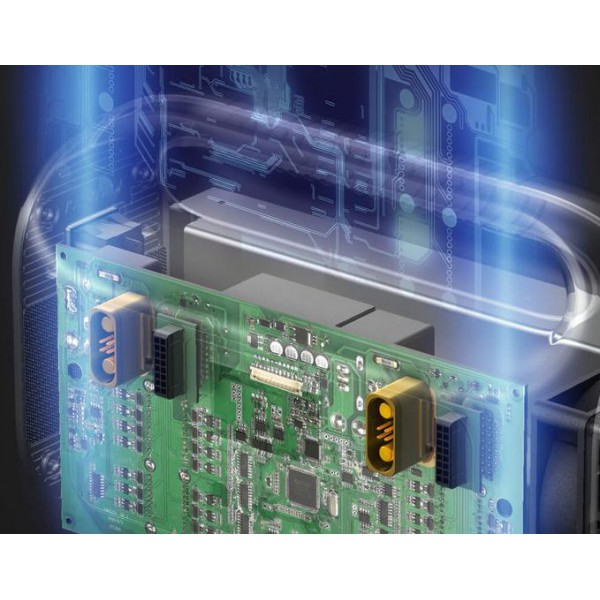

Innovative Circuit Design and More Optimized Algorithm
Efficiency is significantly improved, and reliability gets increased. Stability and durability are ensured through the stunning modular industrial design, considerate space layout, and selection of well-known brand components.
Better Protection with Conformal Coating
Anti-corrosion paint is applied to protect the key circuit's electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger's reliability and stability are ensured for outdoor work.
Go Green with Active PFC
  • Universal AC input
  • Innovative active PFC
  • Industrial-grade Power Management
  • Conversion Rate: UP to 93%

Active PFC uses a circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interferences to the power grid.
Multiple Protection:
  • Short Circuit Protection
  • Reverse Polarity Protection
  • Over-temperature Protection
  • Customers can rest assured of our quality safety and reliability.

Specifications

Size and Weight

  • Size: 294x136x212mm
  • Weight: 4.2Kg

Power Supply

  • AC Input: 100-240V
  • Charging Power:
  • AC220V：1500W
  • AC120V：600W

Battery

  • Type：Lithium Battery
  • LiPo Battery Cells： 12S/14S
  • LiHV Battery Cells：12S

Charger/Discharge

AC 220V
  • Fast Charge Current: 25A
  • Charge Current: 25A (total 25A for two channels)
AC 120V
  • Fast Charge Current: 9A
  • Charge Current：9A (total 9A for two channels)

Discharge Power：60W


Charging Mode：Fast charge, Slow, Storage

  • Output power connector : AS150U
  • Balance connector : Molex 3.0

Data sheet

  • Manufacturer : SkyRC

Accessories

Connector : AS150U 2+4 with cap Female plug (1pcs)

BEEC2062F
