A5080 MT/HS Mini Digital HV Servo

Spektrum A5080 MT/HS Mini Digital HV Servo

Manufacturer: Spektrum

Reference: SPMSA5080

Stock status: Can not be ordered because availability unknown from the supplier. New delivery in +/- 15 days.

Shippingcosts from 6.98€
or collect for free at the shop. .

MCM Price : 69,99 €

Notify me when available

Specifications
Data sheet
Composition Kit

Specifications

Deadband	<1µs
Input Voltage	4.8V-8.4V

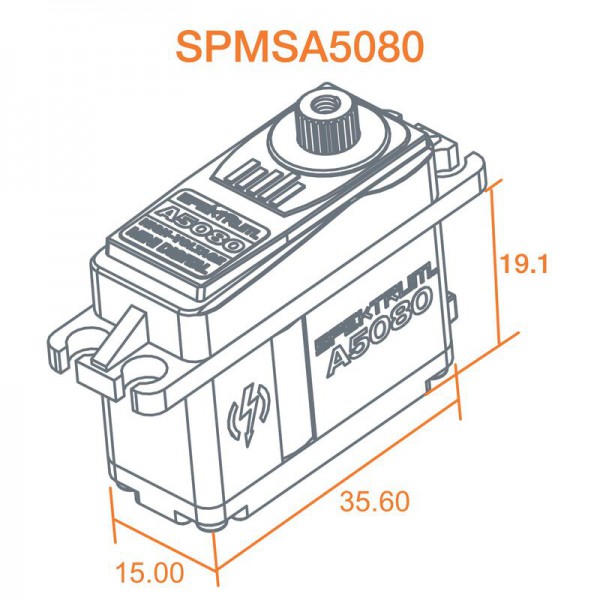

Product Height	1.18" (30 mm)
Servo Type	Digital
Product Length	1.4" (36 mm)
Product Width	0.59" (15 mm)
Max Servo Torque	100-199 oz-in
Overload Protection	No
Product Weight	1.2 oz (34g)
Spline Count	23 - Tooth
Motor Type	Brushed
Servo Operating Voltage	4.8 - 8.4V (HV)
Maximum Servo Torque	110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V
Material	Aluminium
Programmable	No
Servo Size Category	Mini
Bearing	Single BB
Bushing Or Bearing	Bearing
Gear Type	Metal
Maximum Servo Speed	0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V

Data sheet

Manufacturer : Spektrum

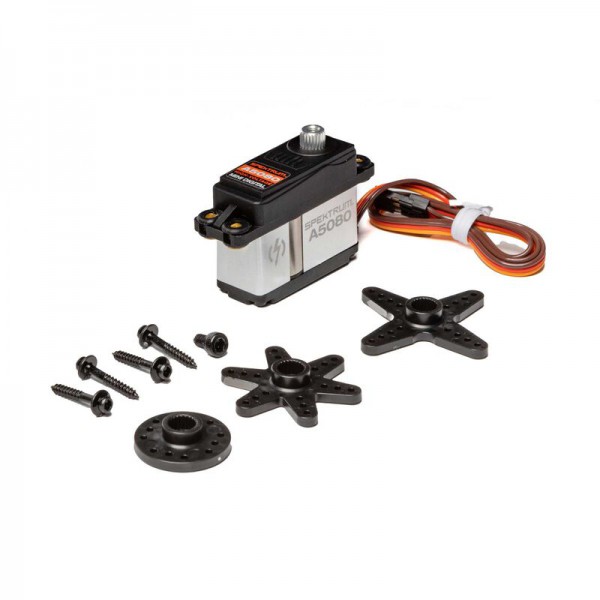

Composition Kit

(1) A5080 Mini Digital Servo
(4) Pre-installed Mounting Grommets and Eyelets With Hardware
(3) Plastic Servo Arms and (1) Screw
