Hobbywing

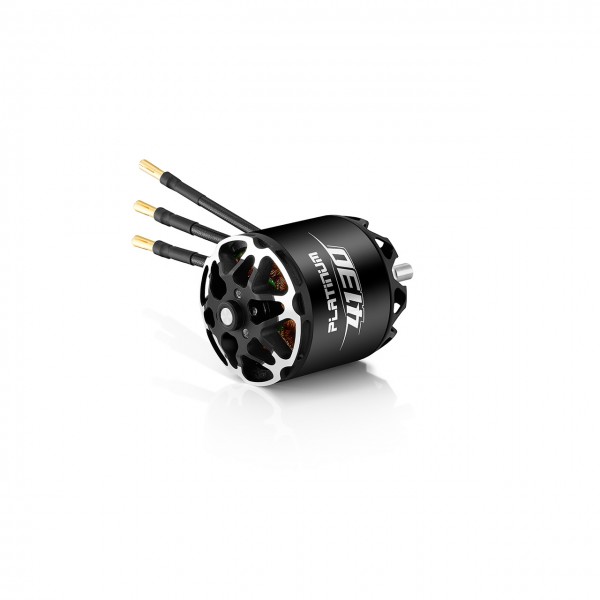

Platinum Motor 50x57 6mm 4130SL 420kV 6s Lipo

Hobbywing brushless Platinum Motor 50x57 6mm 4130SL 420kV 6s Lipo

More details

Hobbywing

HW30416101

Out of stock Can not be ordered because not in stock at our supplier. Delivery time unknown

 Shippingcosts from 6.98€
or collect for free at the shop. .

108,99 €
*

Notify me when available

More info

Hobbywing 41 Series brushless motor for fixed wing aircraft

Specifications

Model  -  Platinum 4130SL 420KV
Specifications Product Number 30416101
Motor Size Φ49.5 *82.3mm
Stator Size Φ40.6*30mm
Stator process High standard silicon steel sheet,180℃ high temperature resistance paint-coat
Enamelled wire 200℃
Props mounting dimensions Φ15mm-3*M3
Motor mounting dimensions Φ30mm-4*M4
Slot& Pole 12N14P
Dynamic balance ≤10mg
Bearing 696ZZ
Motor axle diameter Φ6mm
Isolation test 500V AC high voltage resistance test
Specification KV 420
Battery(LiPo) LiPo-6S
No-load current 2.4A/22.2V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃) 107.6A/1min4s
Max power 2384W/1min4s
Max thrust 8.73kg
Resistance 14mΩ
Wire Size Enamelled Wire Output
Wire length 90mm
Weight(With wire) 420g
Recommended Props/ESCs Recommended ESC PLATINUM 120A V4
PLATINUM 150A V5
Propeller 6S:16X8E,16X10E,
17X8E,18X8E,

Data sheet

  • Manufacturer : Hobbywing

Platinum Motor 50x57 6mm 4130SL 420kV 6s Lipo

108,99 €
