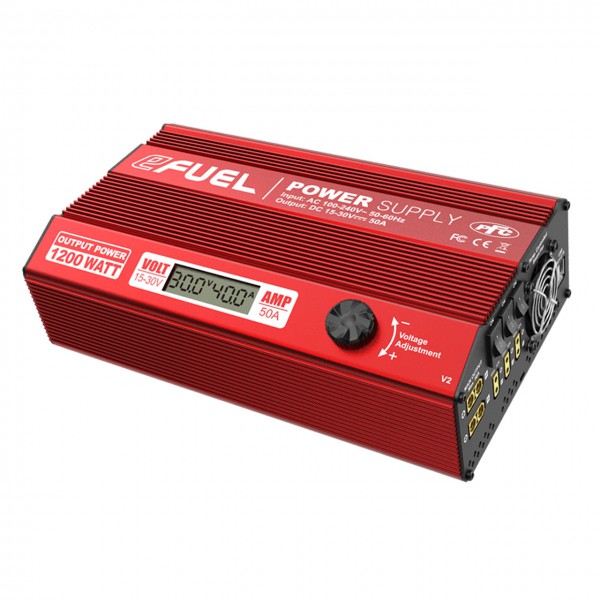

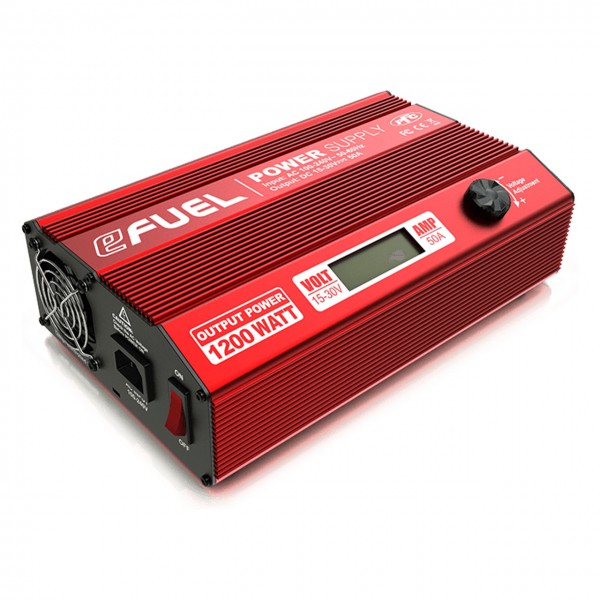

eFuel 50A (1200W) Power Supply with active PFC NEW

EFUEL 50A (1200W) Power Supply : Heavy Duty, Power Ready

With 1200W outputs, adjustable output voltage from 15-30V and active PFC, it is the most advanced power supply you will find anywhere.

More details

SkyRC

SKY200015

In stock, inmediate shipment Last article in stock at our shop Shipping within 24/48 working hours.

 Shippingcosts from 6.99€
or collect for free at the shop. .

315,99 €
*

More info

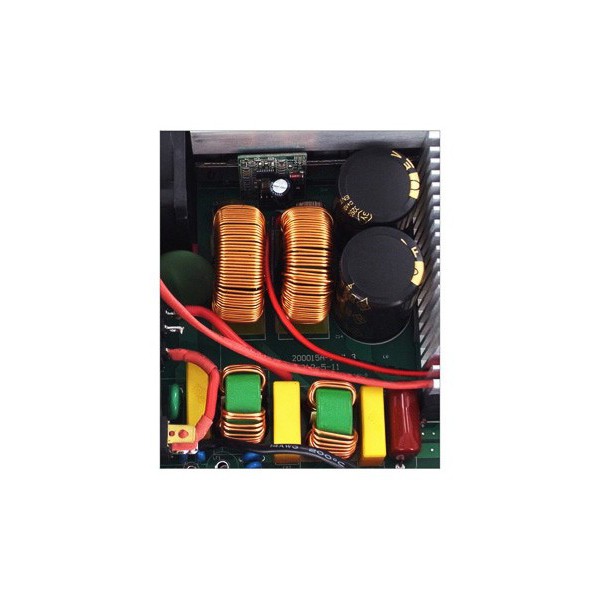

Active PFC

PFC (power factor correction) consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/50A regulated power supply, can provide higher power utilization.
Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.

Intelligent air cooling system

Adopting the cooling system, the fan will be initiated automatically when the operating temperature reaches 50 degrees.

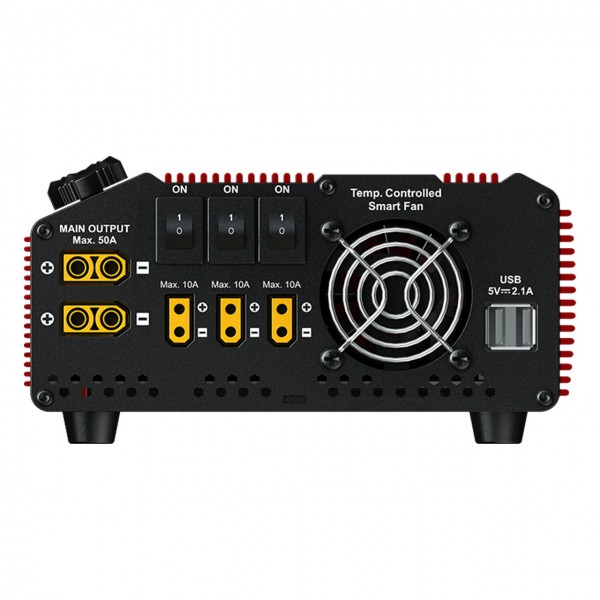

The maximum output of the two main ports is 50A, while each of other three deputy outlets provides up to 10A output with a switch to control respectively.
1200W output with 5 outlets to power your charger, you deserve to have one such power supply.

Key features

  • Active PFC
    Smaller AC input current less interference, and conform to CE Regulations. And it can also improve the energy consumption from mainpower grid evidently.
  • Power Factor Correction (PFC)
    Allows power distribution to operate at its maximum efficiency. There are two types of PFC, Active PFC and Passive PFC
    The preferable type of PFC is Active Power Factor Correction (Active PFC) since it provides more efficient power frequency. Because active PFC uses a circuit to correct power factor, active PFC is able to generate a theoretical power factor of over 95%. Active Power Factor Correction also markedly diminishes total harmonics, automatically corrects for AC input voltage, and is capable of a full range of input voltage.
  • DC Output
    One main DC power output, up to 50 Amperes, three outputs (up to 10 Amperes each) with ON/OFF switch. 1200W output gives you all the power you need to run your high-powered application, or use multiple chargers simultaneously with three sets of integrated banana plug outputs!
  • Adjustable Output
    Voltage 15-30V

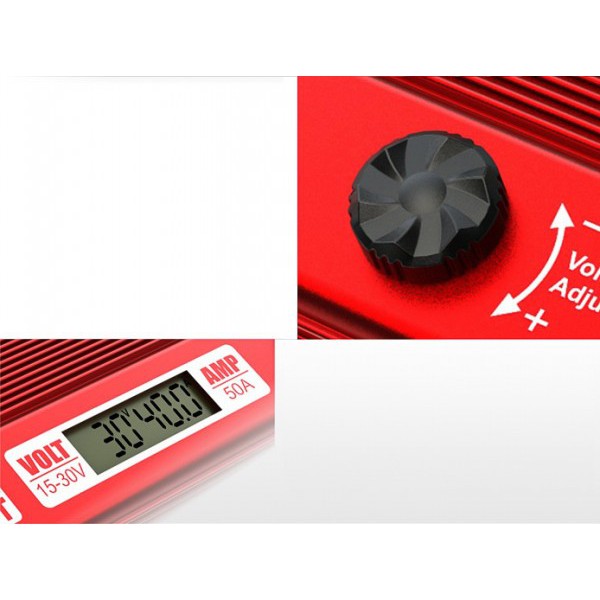

  • LCD Display

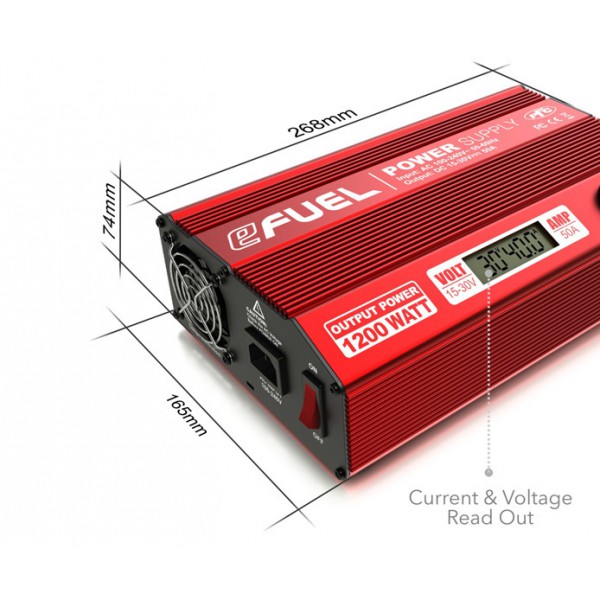

    The output voltage and current are displayed on the digital readouts on the front, allowing you to identify the voltage and current at a glance.
  • AC Input 100-240V
    Worldwide operation: need not any alternative switcher.
  • Two USB Ports
    5 volts, 2100mA total for iPad, mobile phone, digital cameras and etc.
  • Smart Cooling Fan
    Automatically turns on at 50 °C
  • Safety features
    Over current, over voltage, over load and over temperature protection.
    Short-circuit protection on output, safer and more reliable.

Specifications

  • Voltage : 100-240V AC
  • Input AC Frequency : 50-60Hz
  • Output Voltage : 15-30V DC±0.5V
  • Output Current : 50A±1A
  • Input Fuse : 20A Fuse
  • LCD Display :
    • Voltage Precision ±0.3V
    • Current Precision ±0.5A
  • Power Efficiency : 89%
  • Power Factor : > 0.98
  • Over Temperature Protection : <65℃
  • Cooling Method : Cooling Fan

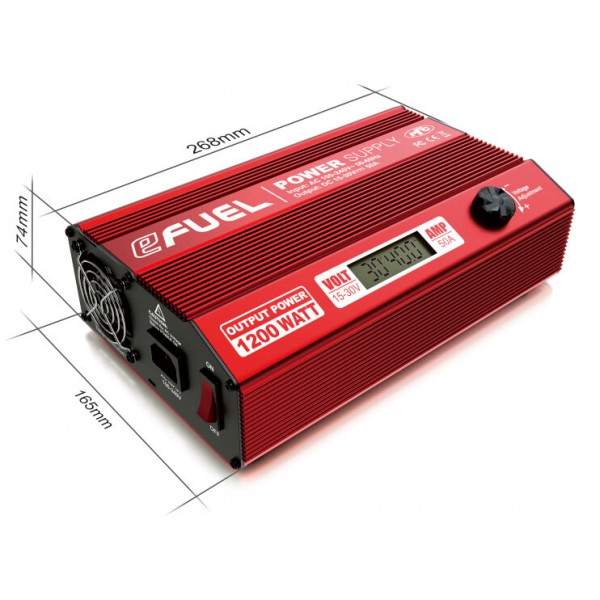

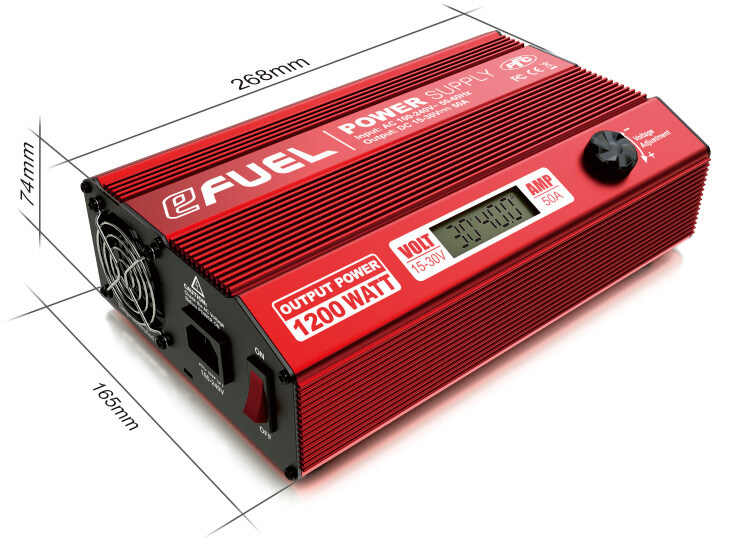

  • Dimensions (L*W*H) : 305x170x85mm
  • Net weight : 3.08kg

Data sheet

  • Manufacturer : SkyRC
