Enjoy Big Summit Fun in a More Convenient 1/16 Scale Size!

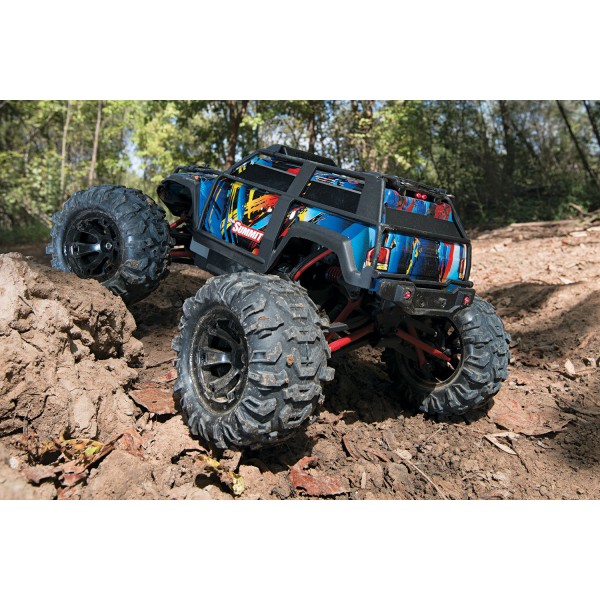

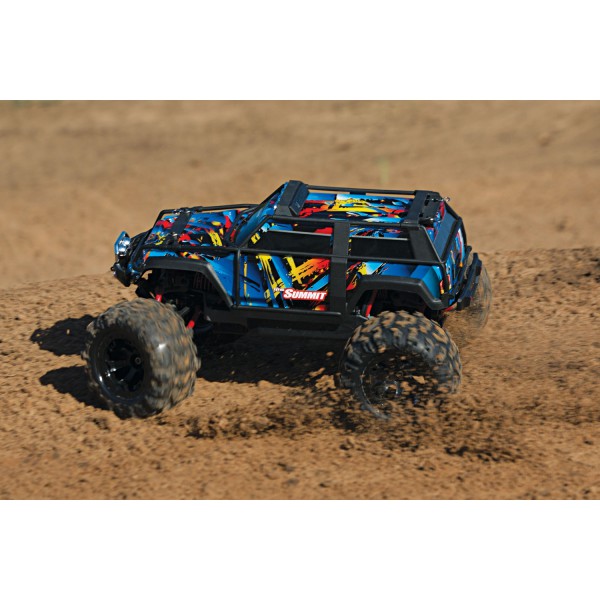

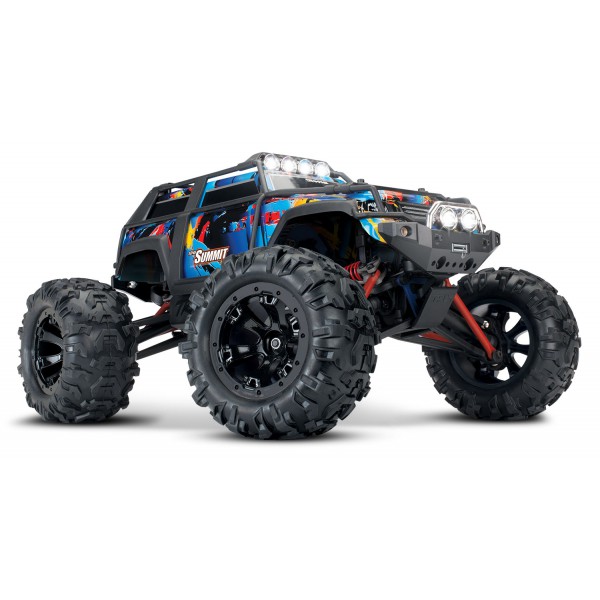

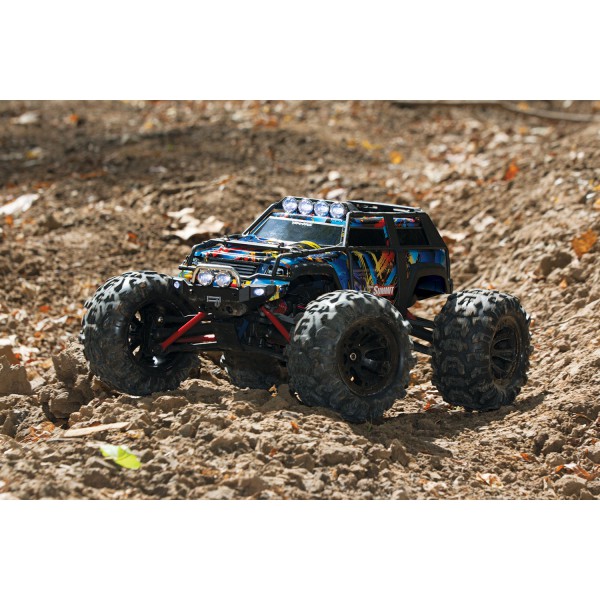

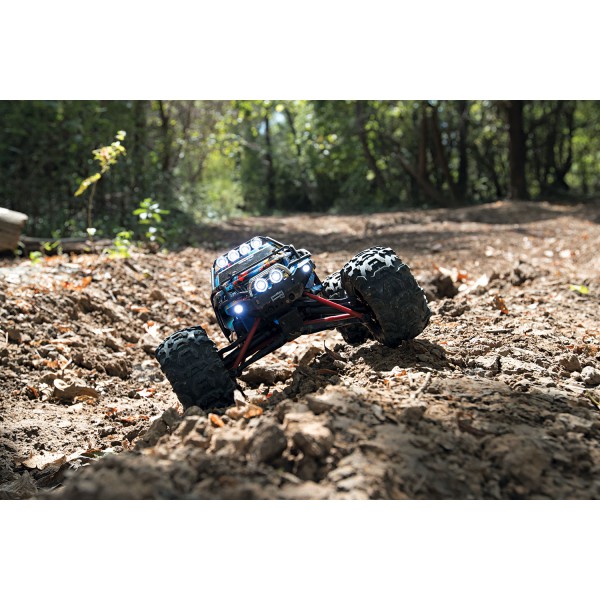

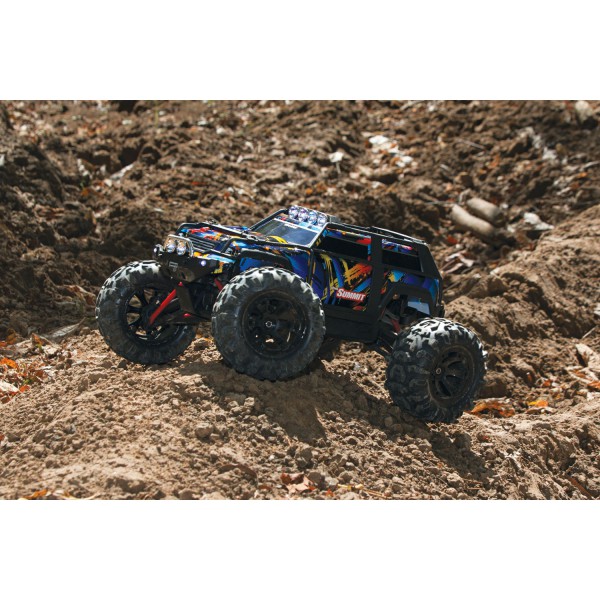

Leave it to Traxxas to stuff a 1/10 scale motor into a 1/16 scale truck! Summit’s mighty Titan® 12T 550 motor delivers nearly limitless torque for tire-scorching acceleration and all-terrain capability. With massive suspension travel, extreme Titan power, and 4-wheel drive traction, Summit tackles impossible terrain. Traxxas engineers combined all the big Summit's go-anywhere versatility with waterproof electronics to make even your wildest adventures possible. Summit’s bright LED lights blaze a trail, making night runs more exciting than ever. The 1/16 Summit's just-right size lets you enjoy hours of off-road fun anytime, anywhere!
Proven Traxxas Innovation

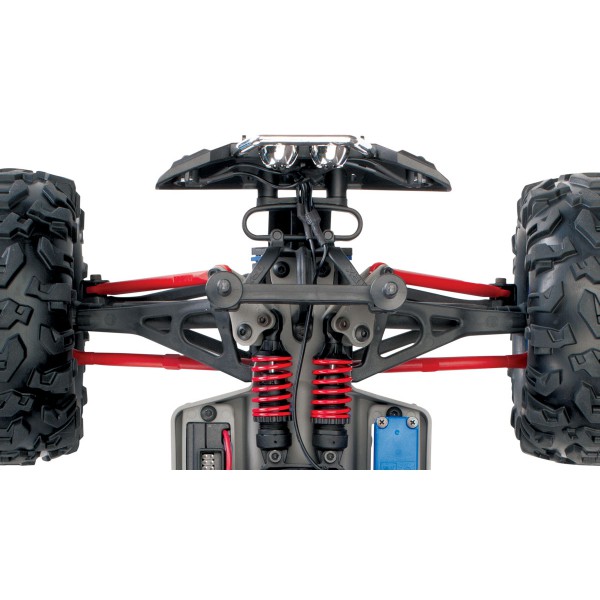

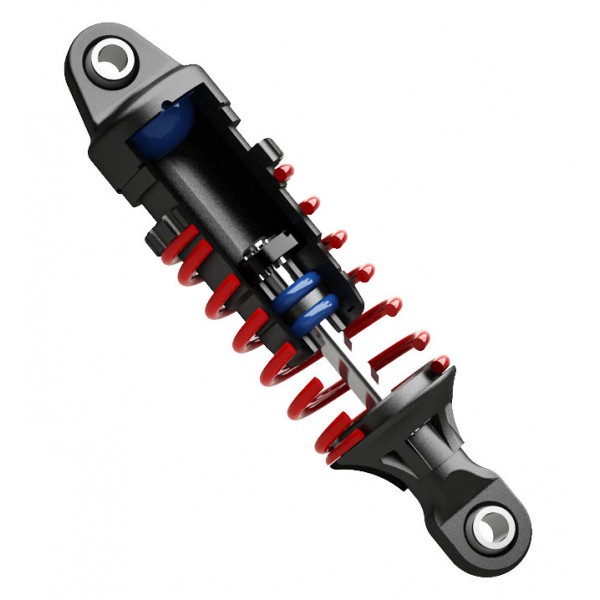

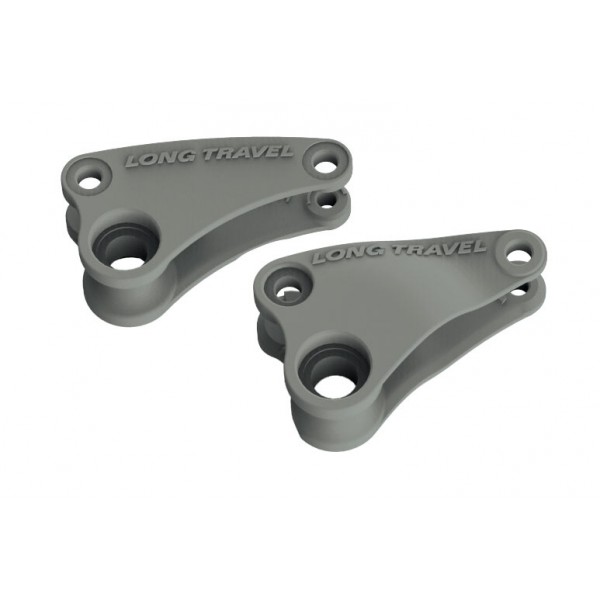

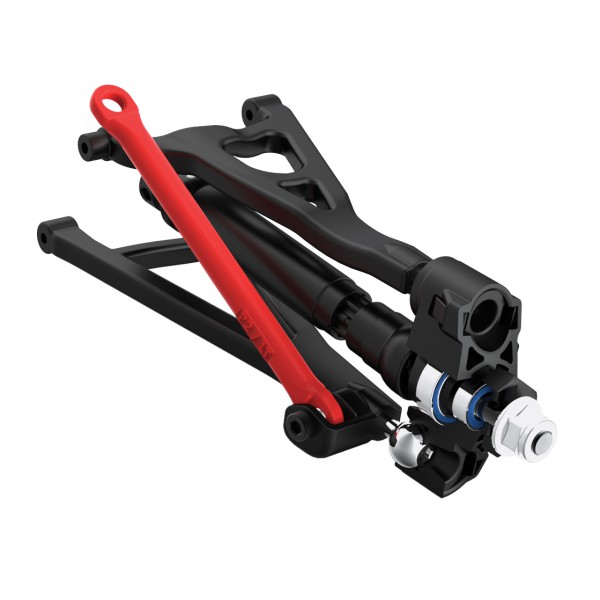

Traxxas packed all the capability, durability, and excitement of our award-winning models into 1/16 scale for fast, affordable RC fun. The Summit’s rocker-actuated suspension is adapted expertly to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics integrate fully into a radically innovative monocoque chassis design. Intricately molded as a single piece, the chassis balances strength and weight with function and performance to surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.
100% Ready-To-Race®

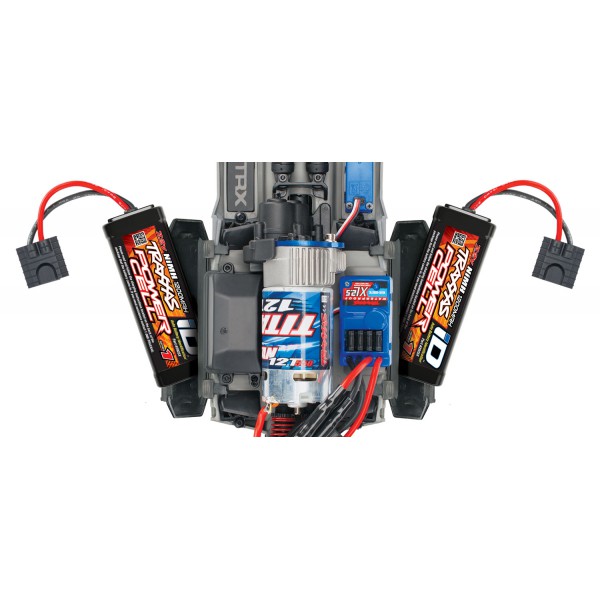

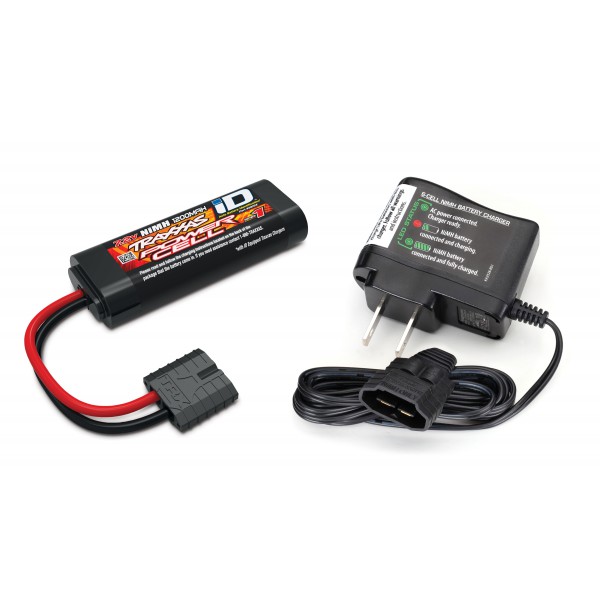

The 1/16 Summit comes fully assembled with TQ 2.4GHz radio system, Titan 12-T power, pre-painted body, pre-glued tires, and detailed instructions. A Traxxas Power Cell NiMH battery and AC wall charger are also included. Only Traxxas could pack this level of performance, innovation, and value into a Ready-To-Race package with the quality you expect. Traxxas backs the Summit and all of our products with top-notch support that is second to none.
Key features

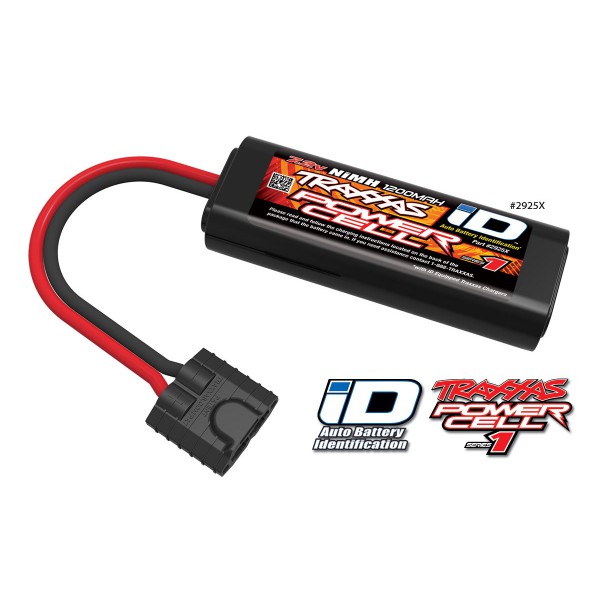

- 6-cell NiMH Power Cell Battery with iD
- Ready-To-Race® with Included Power Cell™ NiMH Battery
and AC Wall-Outlet Charger - Powerful Titan® 12T 550 Motor—Largest in Class

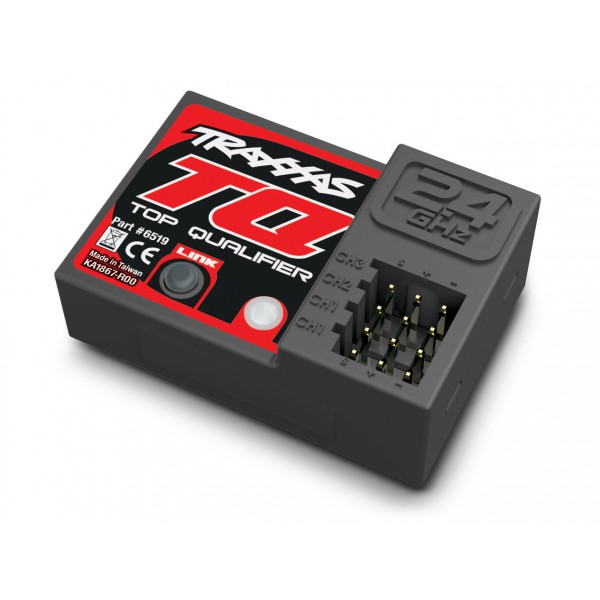

- TQ™ 2.4GHz Transmitter and Receiver
- Full-Time 4WD

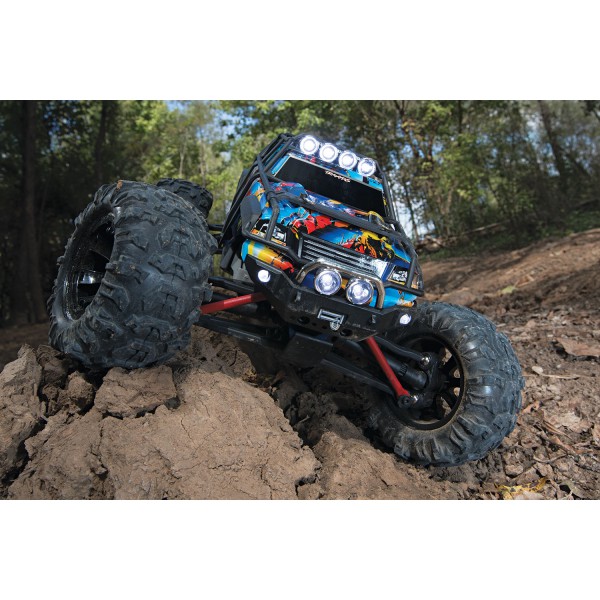

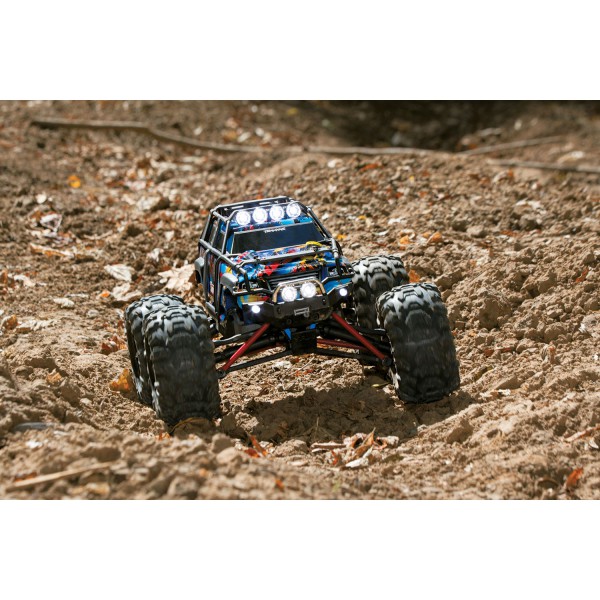

- Bright LED Lights Front and Rear to Illuminate the Trail
- Waterproof Electronics for all-Weather Adventures
- Torque-Control™ Adjustable Slipper Clutch
- Sealed Differentials
- Realistic all-Terrain Tires with Foam Inserts
Specifications
1/16 SUMMIT (#72054-5) SPECS
Length: | 12.6" (320mm) | |
Front Track: | 10.43" (265mm) | |
Rear Track: | 10.63" (270mm) | |
Weight: | 46.4oz (1.31kg) | |
Height (Overall): | 7.48" (190mm) | |
Wheelbase: | 8.425" (214mm) | |
Wheel Diameter | 2.2" (56mm) | |
Shock Length (Front / Rear): | 48mm / 48mm | |
Front/Rear Tires (Glued): | Canyon AT | |
Front/Rear Wheels: | Geode™ | |
Electronic Speed Control: | Waterproof XL-2.5 ESC | |
Motor (Electric): | Titan® 12T 550 | |

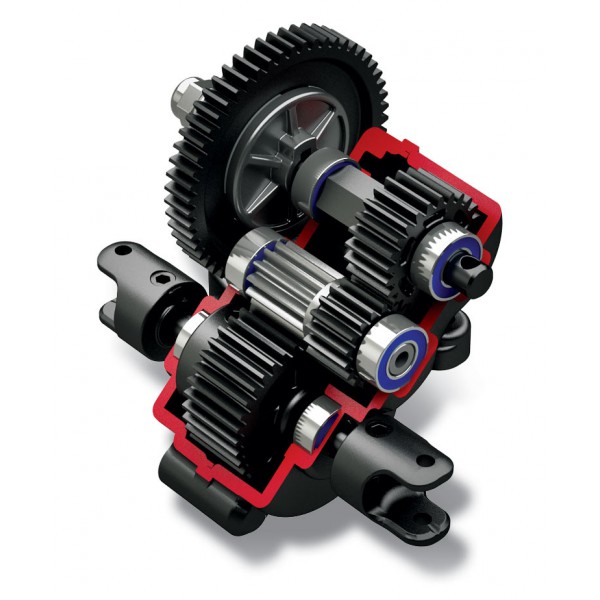

Transmission: | Heavy-Duty Single Speed | |
Gear Ratio (Internal): | 5.04:1, (Reversed Input: 9.72:1) | |
Overall Drive Ratio: | 15.75:1 (stock) | |
Differential Type: | Hardened Steel Bevel, Sealed | |
Gear Pitch: | 48-Pitch | |

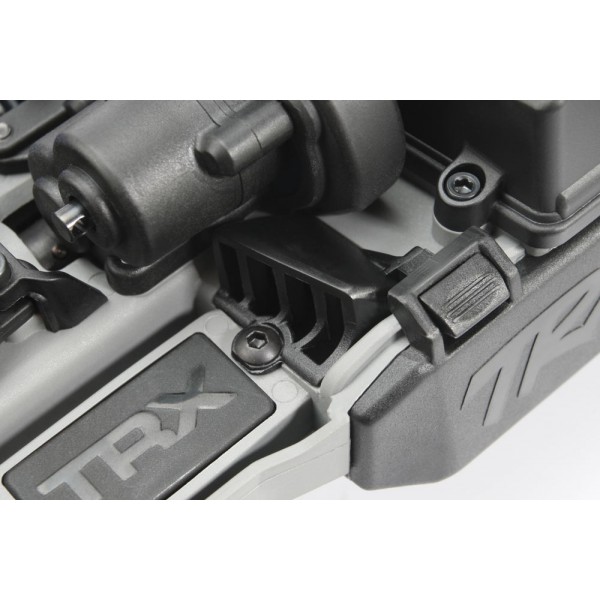

Chassis Structure/Material: | Molded Composite Nylon Monocoque | |
Brake Type: | Electronic | |

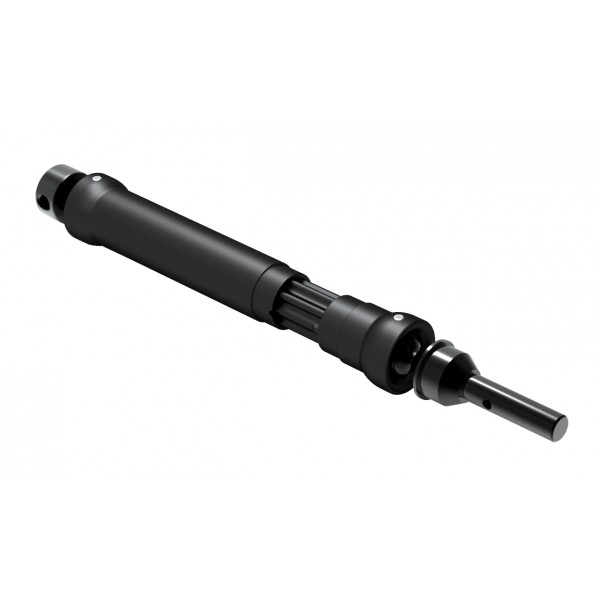

Drive System: | Shaft-Driven 4WD | |
Steering: | Bellcrank | |
Radio System: | Traxxas TQ™ 2.4GHz (2-Channel) | |
Included Charger: | AC Wall-Outlet Charger | |
Included Batteries: | 6-cell NiMH with iD Connector | |
Required Batteries: | 4 "AA" (Transmitter) (vehicle includes 6-cell NiMH & charger) |
XL-2.5 WATERPROOF ESC SPECIFICATIONS
Input Voltage: | 4-7 Cells NiMH, 2 Cells (2S) LiPo | |
Case Size: | 26.5mm W x 46.5mm D x 22mm H | |
Weight: | 33 Grams | |
Motor Limit: | 10-Turns* | |
On Resistance (@Trans): | 0.008 Ohms | |
Reverse Delay: | None | |
BEC Voltage: | 6.0V DC | |
Power Wire: | 16 Gauge / 40mm | |
Input Harness Wire: | 26 Gauge / 130mm | |
Motor Wires: | 26 Gauge / 130mm | |
Transistor Type: | MOSFET | |
Low Voltage Detection: | 2-Stage Indicators, Switchable (On and Off) | |
PWM Frequency: | 2300 Hz | |
Thermal Protection: | Thermal Shutdown | |
Profile Selection: | Sport Mode: 100% Fwd, 100% Brakes, 100% Rev Race Mode: 100% Fwd, 100% Brakes, no Rev Training Mode:** 50% Fwd, 100% Brakes, 50% Rev |
|
Single-Button Setup: | Yes, Traxxas EZ-Set® |
Data sheet
- Manufacturer : Traxxas
- Level of difficulty (1 to 3) : 1
- Scale : 1/16
- Type : Ready to Run
- Drive : Electric (Brushed)
Composition Kit
Fully assembled, Ready-To-Race® with TQ 2.4GHz radio system, Titan® 12-turn motor, XL-2.5 ESC, 7.2 volt iD NiMH battery, AC wall charger, and painted body.
