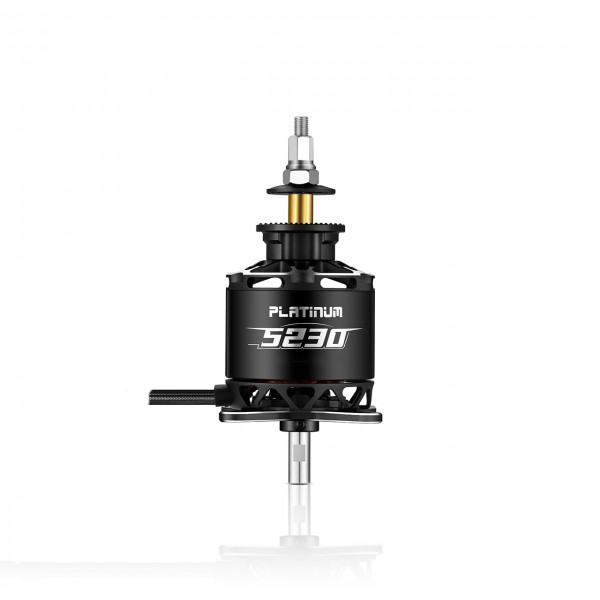

Hobbywing brushless Platinum Motor 60x94 8mm 5230SL 190kV 10-12s Lipo
| Model | Platinum 5230SL 190KV | ||
| Specifications | Product Number | 30416200 | |
| Motor Size | Φ60.2 *93.5mm | ||
| Stator Size | Φ51.7*t30 | ||
| Stator process | High standard silicon steel sheet, 180℃ high temperature resistance paint-coat | ||
| Enamelled wire | 200℃ | ||
| Fiber Screw Thread | Φ22mm-3*M4 | ||
| Screw Diameter/Thread | Φ30mm-4*M4;Φ44mm-4*M4 | ||
| Slot& Pole | 24N28P | ||
| Dynamic balance | ≤10mg | ||
| Bearing | 1560ZZ，698ZZ | ||
| Motor axle diameter | 8mm | ||
| Isolation test | 500V AC high voltage resistance test | ||
| KV | 190 | ||
| Battery(LiPo) | LiPo-10~12S | ||
| No-load current | 3.0A/44.4V | ||
| Maximum current (Non-hermetic Ambient Temperature ≤ 25℃） | 112.5A/42s | ||
| Max power | 4985W/42s | ||
| Max thrust | 14.99kg | ||
| Resistance | 22mΩ | ||
| Wire Size | Enamelled Wire Output | ||
| Wire length | 100mm | ||
| Weight（With wire） | 582g | ||
| Recommended Props/ESCs | Recommended ESC | PLATINUM 130A V4 PLATINUM 180A V5 | |
| Propeller | 10S：20x10E，22x10E，22x12E 12S： 20x8E， 20x10E，22x10E | ||
Platinum Motor 60x94 8mm 5230SL 190kV 10-12s Lipo
142,99 €
