Servo Coreless HV for 1/12 8.0kg/0.07sec @7.4V

Maximize

Electronics Servos Electronics & Motors

Servo Coreless HV for 1/12 8.0kg/0.07sec @7.4V

SRT servo MIN6 for Pan Car 1/12 - Coreless - HV

More details

Manufacturer: SRT

Reference: SRTMIN6

Stock status: New item in pre-order The announced products is not available yet

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 78,99 €

Quantity Maximum quantity reached.

Notify me when available

More info
Key features
Specifications
Data sheet

More info

Usage : 1/12 Pan Car

The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

All of SRT servos are available to be customized for easy installation by OEM order.

Key features

Special 1/12 pancar servo
Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
Incredible efficiency and low power consumption
2 μsec Dead Band
1-Year Limited Warranty

Specifications

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: 7075 Aluminum
control system: pulse width control
working frequence: 1520μs / 333hz
operating voltage: dc4.8-8.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.100 sec/60 degrees at no load
operating speed (6.0v): 0.080 sec/60 degrees at no load
operating speed (7.4v): 0.070 sec/60 degrees at no load
operating speed (8.4v): 0.062 sec/60 degrees at no load
stall torque (4.8v): 5.0kg.cm (69.4 oz/in)
stall torque (6.0v): 6.8kg.cm (94.4 oz/in)
stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
potentiometer drive: direct drive

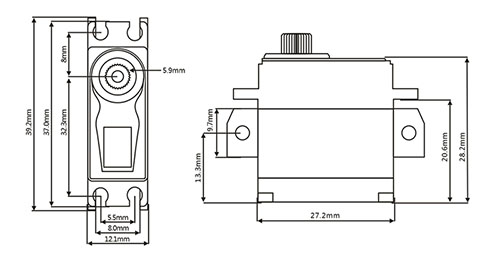

dimensions: 27.2x12.1x28.2 mm /1.07x0.48x1.11 in
weight: 18.0g (0.63 oz)
connector wire length: jr 170 mm

Data sheet

Manufacturer : SRT
