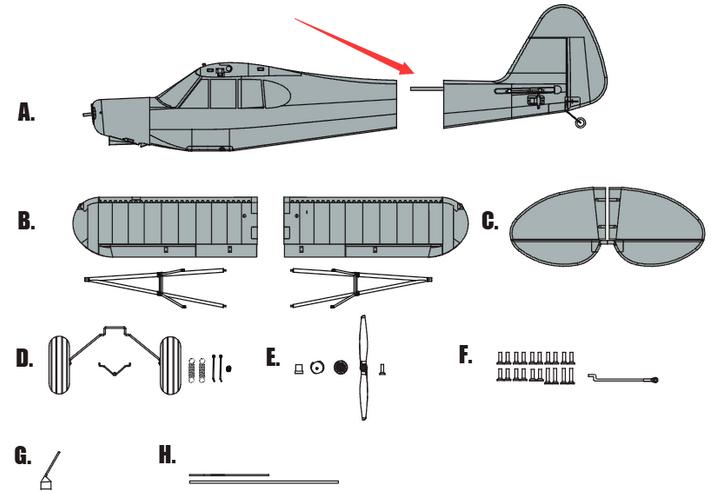

NEW in VERSION 2 : The segmented fuselage design reduces the packaging size by 30%, greatly enhancing transportation convenience for pilots.
The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. It was developed from the Piper PA-11. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner towing and glider towing.
As a relative of the popular 1400mm J-3 Cub, the 1700mm PA-18 Super Cub retains great flight characteristics while offering increased power and wingspan. Thanks to its functional flaps, high-lift airfoil, rugged landing
gear and oversized balloon tires- the 1700mm PA-18 Super Cub has impressive short take-off and landing (STOL) performance, allowing it to operate from just about any terrain.
Utilizing the latest FMS hardware and design, the 1700mm PA-18 Super Cub has pre-installed ball-link type pushrods, integrated servo connectors in the wing structure and can be assembled very easily using no glue at all.

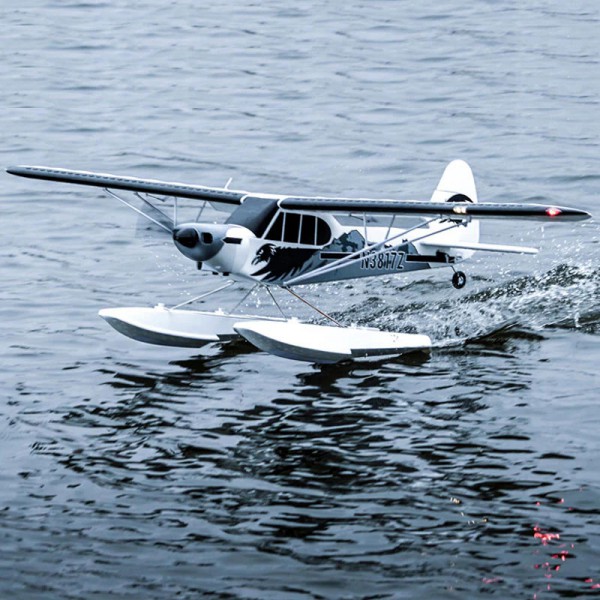

For pilots wanting to get the genuine bush-plane experience, the PA-18 Super Cub can be equipped with floats (not included).
Versatile, fun and exceptionally relaxing to fly- the 1700mm PA-18 Super Cub is a great addition to any fleet!
Key features
Specifications
Wingspan | 1700MM/66.9in |
Overall length | 1136MM/44.7in |
Flying weight | 2100g |
Motor size | 3541-KV750 |
ESC | 45A |
Servo | 17g*6 |
Radio | 6 Channel |
CG (center of gravity) | 80-85mm(From leading edge) |
Prop Size | 12*7.5, 2-blade |
Recommended battery | 14.8V 2600-4000mAh 4s 35C |
Battery Connector | XT60 |
Aileron | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Retracts | No |
LED | Yes |
Approx. flying duration | 4-5 minutes |
Minimum age recommendation | 14+ |
Experience level | intermediate |
Assembly time | around 40 minutes |
Wing load | 50g/dm²; 0.11oz/in2 |
Wing area | 42dm² ;651sq.in |
Data sheet
- Manufacturer : FMS
- Level of difficulty (1 to 3) : 1
- Type de Kit : RTF
- Matter : EPP / EPO Foam
- Kits : Trainers
- Type : Ready to Fly
- Drive : Electric
What you need to complete
Batteries for transmitter

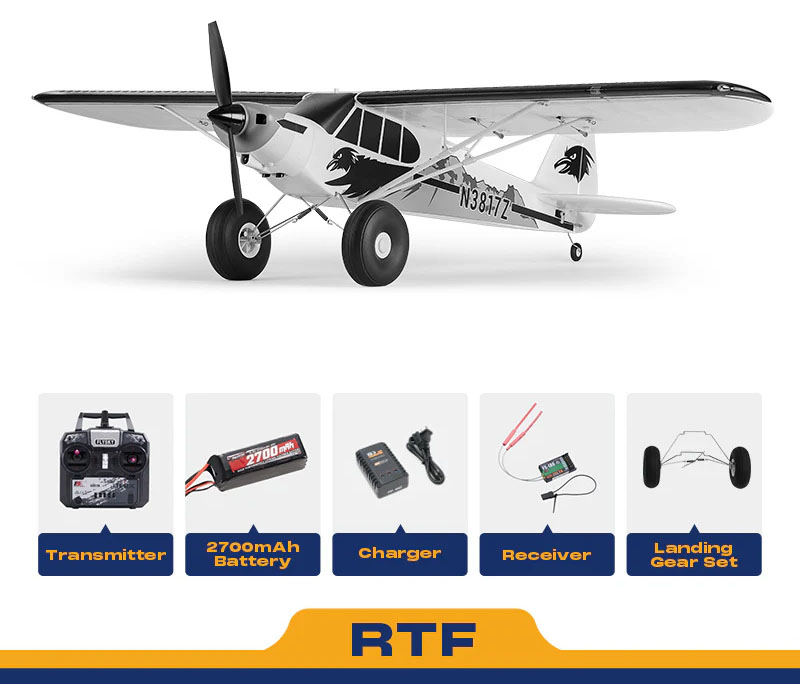

Composition Kit
- Prebuilt aircraft with servos, brushless motor & ESC installed, propeller.
- Transmitter
- Receiver
- 4S 2700 mAh LiPo Battery
- Charger
Videos
1/8 Plane 1700mm PA-18 Super Cub V2 RTF kit (M2)
369,99 €
