Trail Finder 2 Truck Kit SWB

Expert Expert

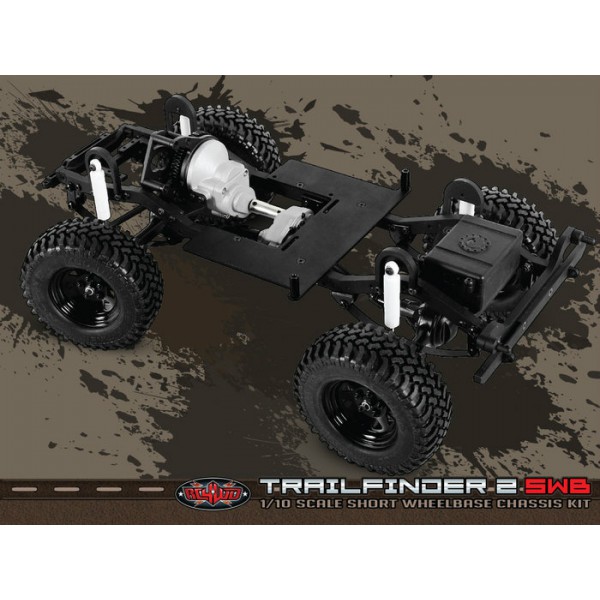

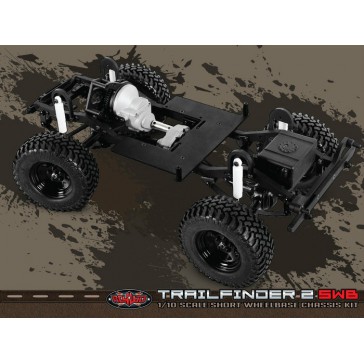

RC4WD Trail Finder 2 SWB chassis kit

More details

RC4WD

RC4ZK0045

In stock at the supplier In stock at our supplier. Shipment in +/- 15 days, without warranty.

 Shippingcosts from 6.99€
or collect for free at the shop. .

549,19 €
*


Notify me when available

More info

The TF2 SWB has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.
Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance
and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2 SWB.

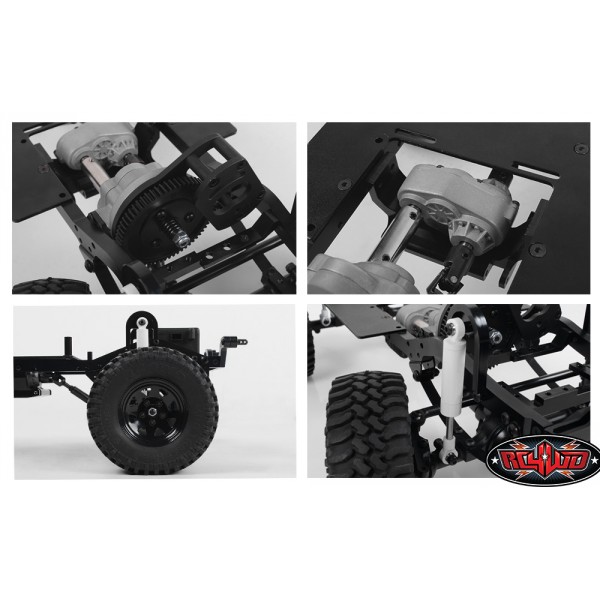

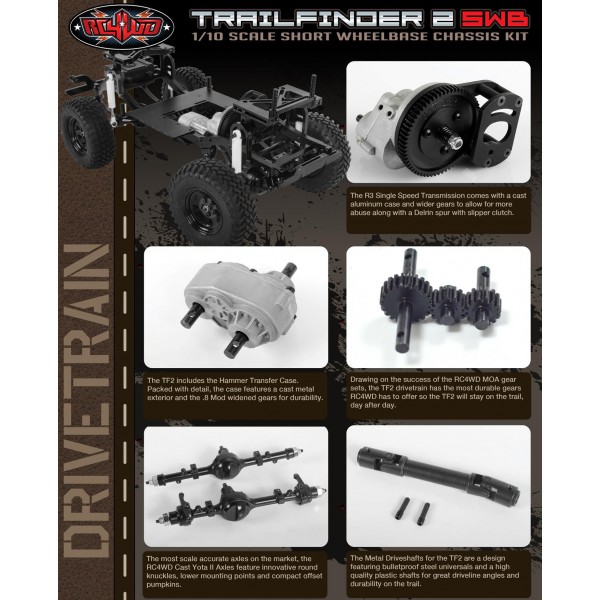

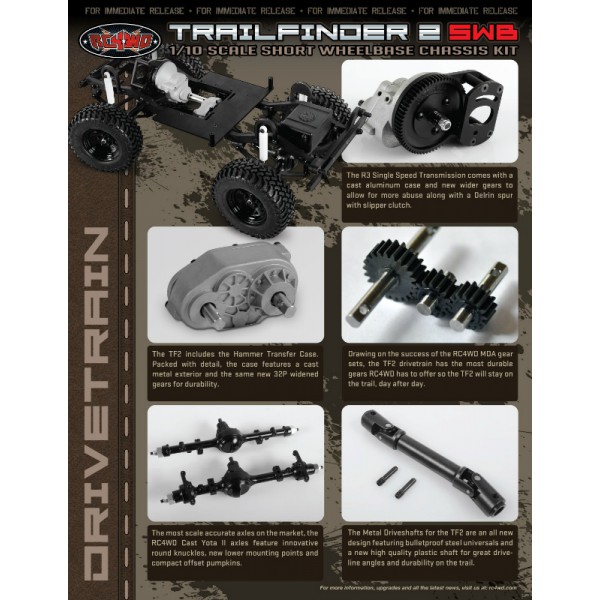

Drivetrain

The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the .8 Mod widened gears for durability.

The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

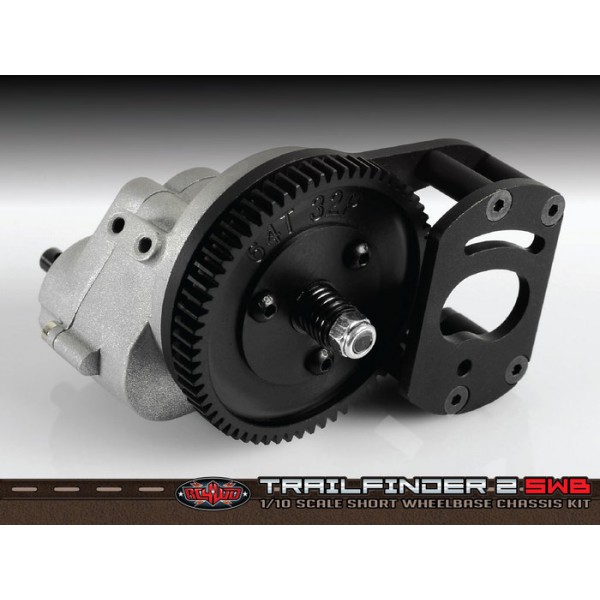

The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.

Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

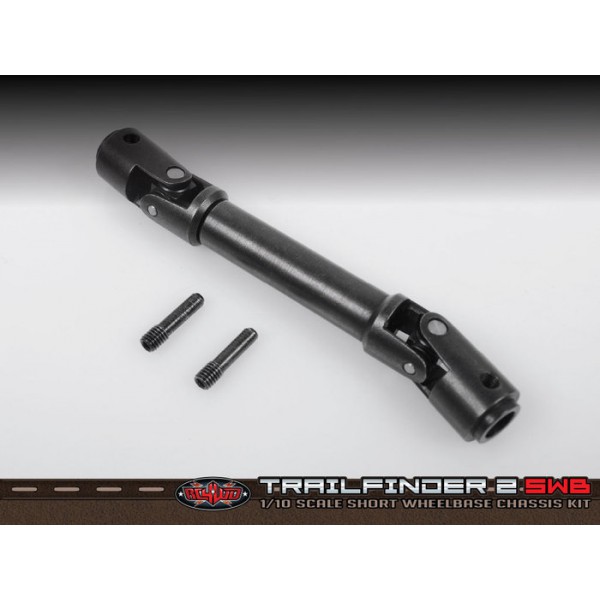

The Metal Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

Suspensions

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wagon Wheels. Super tough black painted finish, aluminum internal ring and popular 5 lug design.

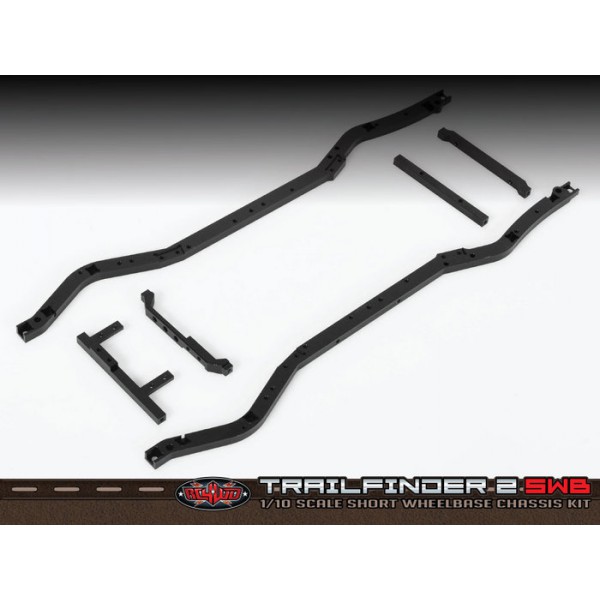

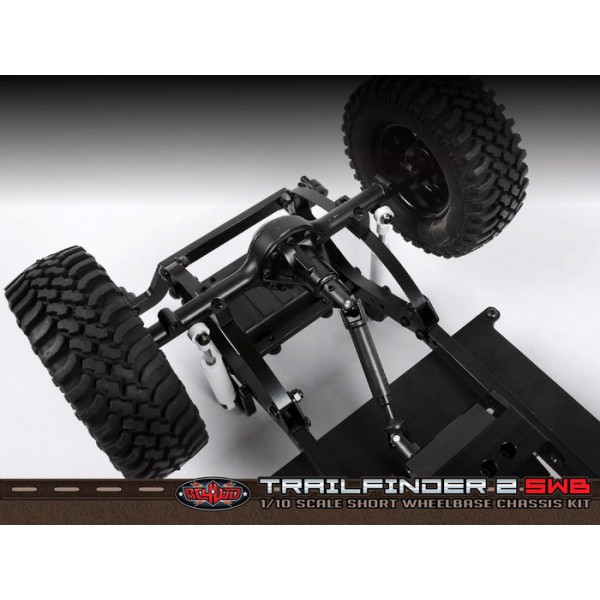

The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available

Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

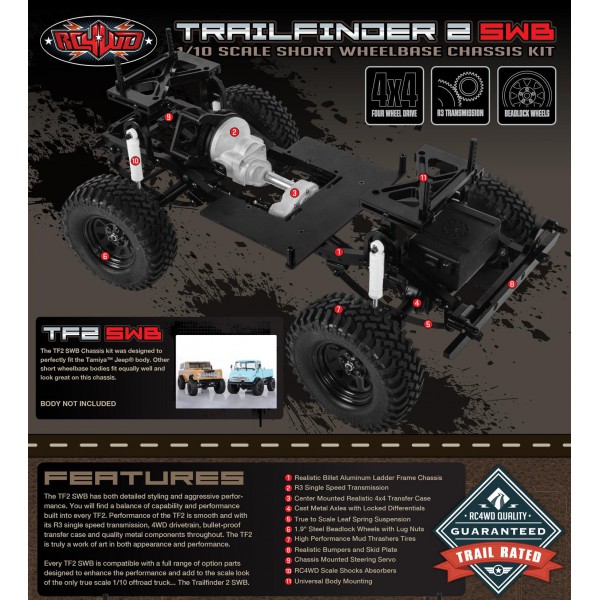

Key features

  • Realistic Billet Aluminum Ladder Frame Chassis "SWB"
  • R3 Single Speed Transmission
  • Center Mounted Realistic 4x4 Transfer Case
  • Yota II Ultimate Scale Cast Axle
  • True to Scale Leaf Spring Suspension
  • 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
  • Mud Thrashers 1.9" Scale Tires
  • Realistic Bumpers and Skid Plate
  • Chassis Mounted Steering Servo
  • RC4WD Scale Shock Absorbers
  • Plastic Rod Ends
  • Full Ball Bearings

Specifications

All New Hammer Transfer Case

  • Ratio - 1.47:1
  • Gears - Wide .8 Mod steel gears


All New R3 Single Speed Transmission

  • Ratio: 1.78:1
  • Pinion/spur 14/64 = 4.57:1


Cast Yota 2 Axles

  • Ratio: 15/40 = 2.67:1
  • Width at hex: 176.5mm


Trailfinder 2 SWB Chassis

  • Features - Billet aluminum construction Adjustable shock hoops


Driveshafts

  • RC4WD Punisher Metal Driveshafts
  • Heavy duty steel construction


Wheels

  • Type: 1.9 Steel Beadlock Wheels with Lug Nuts
  • Hub: Pin type
  • Width: 25mm
  • Back spacing: 11mm


TF2 SWB Dimensions

  • Wheelbase: 9.9in / 242mm
  • Width: 8.3in / 211mm
  • Height: 5.55in / 141mm
  • Ground Clearance: 2.3in / 58.5mm
  • Overall Length: 15.31in / 389mm
  • Weight: 62.1oz / 1.76kg

Data sheet

  • Manufacturer : RC4WD
  • Level of difficulty (1 to 3) : 3
  • Scale : 1/10
  • Type : To build
  • Drive : Electric (Brushed)

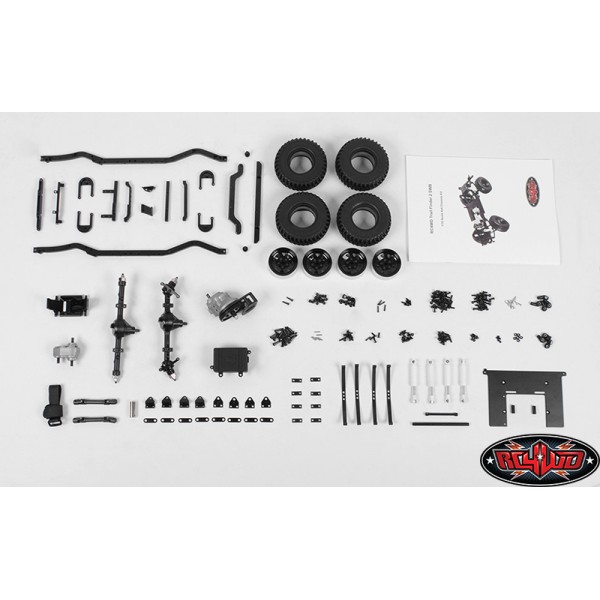

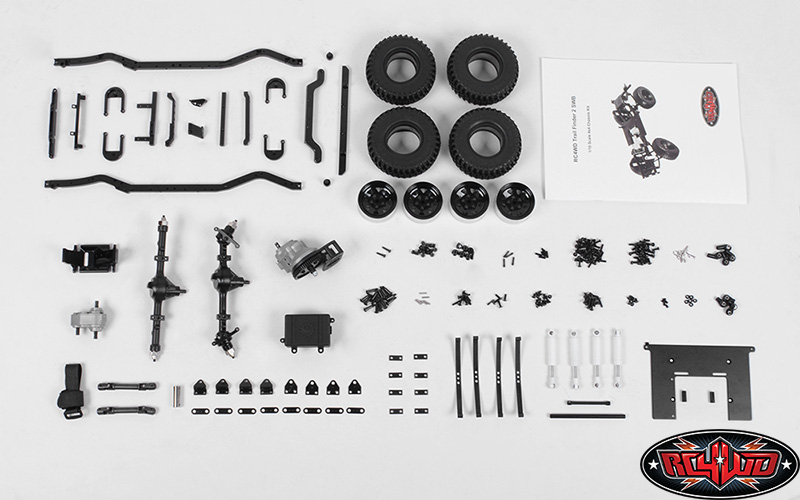

Composition Kit

  • 1x RC4WD Trail Finder 2 SWB
  • Universal Body Mounting Kit for TF2 SWB (Z-S1753)

Trail Finder 2 Truck Kit SWB

549,19 €
