Servo BHMX2 Brushless HV i-BUS2 23.0kg/0.65sec @8,4V

Servo for :

• 1/10 Electric Touring
• 1/10 2WD Electric Buggy
• 1/10 Nitro Touring
• 1/8 Nitro Touring

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

• Ideal for 1/10 on road applications
• Incredible efficiency and low power consumption
• Extremely sensitive response speed
• Aluminum case for good heat dissipation
• NMB dual main bearings
• Supporting SR, SSR, SFR, SUR, SXR multiple ultra high speed modes
• 25T output shaft
• 1-Year Limited Warrant

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Titanium + 7075
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.080 sec/60 degrees at no load
• operating speed (7.4v): 0.073 sec/60 degrees at no load
• operating speed (8.4v): 0.065 sec/60 degrees at no load
• stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
• stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
• stall torque (8.4v): 23.0kg.cm (319.4 oz/in)
• potentiometer drive: direct drive

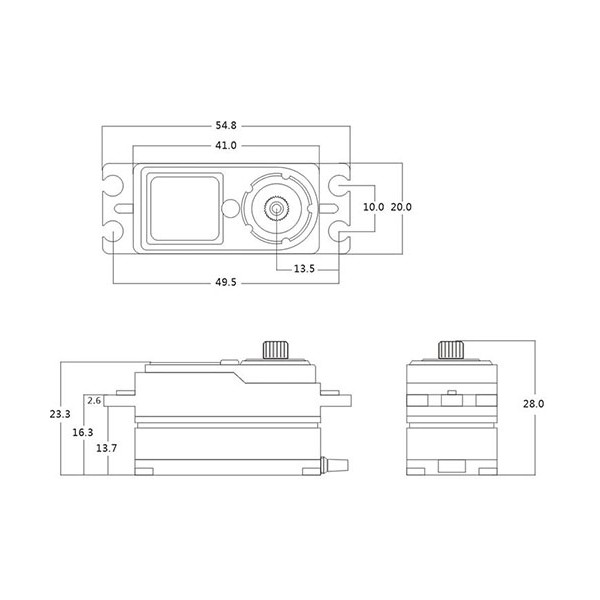

• dimensions: 41.0x20.0x23.3 mm /1.61x0.79x0.92 in
• weight: 42.0g (1.48 oz)
• connector wire length: jr 180 mm（Specifically designed for nitro car steering）
• connector wire length: jr 80 mm（Specifically designed for electric car）
