Cheetah 10 S60A ESC + 4000KV/8.5T 2P BL Motor

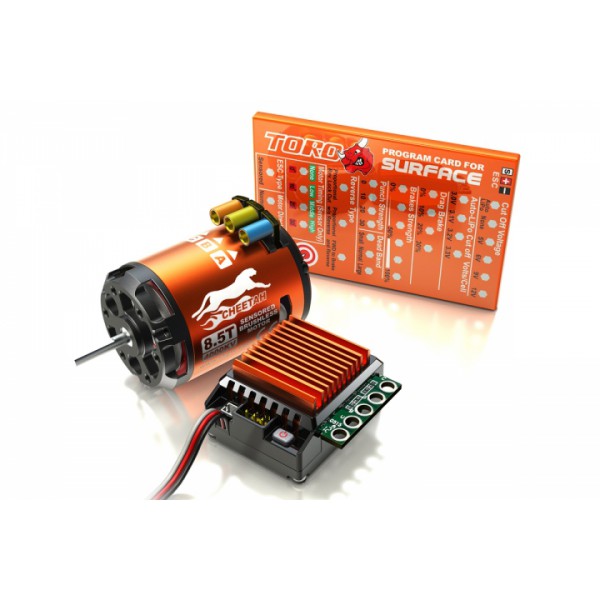

Cheetah 1/10th 60A Sensored Combo set is ready to run out of box,coming with Cheetah 60A Sensored ESC, Cheetah Sensored Motor and Program Card.

More details

SkyRC

SKY300058-01

In stock, inmediate shipment Last article in stock at our shop Shipping within 24/48 working hours.

 Shippingcosts from 6.99€
or collect for free at the shop. .

136,99 €
*

More info

This combo is perfect for 1/10th scale Car.
There are 5 kinds of motor KV which can meet your request for speed or torque. When you connect the ESC with the program card, you could tune and tweak all your favorite settings such as cut-off voltage,brake and punch strength, drag brake and other parameters that add up to an incredible RC driving experience.

Key features

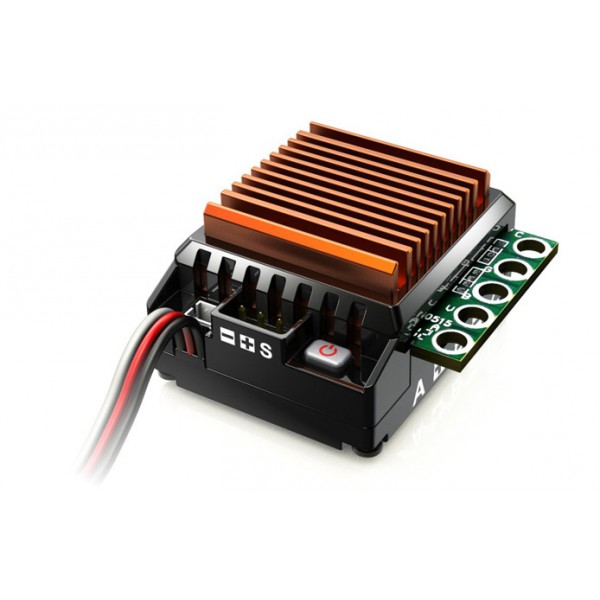

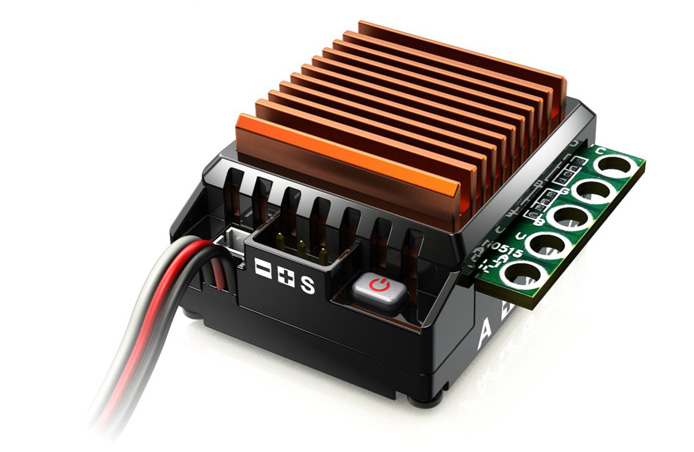

Cheetah 1/10th CS60 60A Sensored ESC

It is designed for 1/10th and 1/12th scale car with the use of 2-3 cells LiPo battery and 5-9 NiMH battery. Equipped with 6V/3A BEC, it doesn't need a separate receiver pack. With Program Card, you could set cut-off voltage, brake and punch strength, drag brake and other parameters.

Small size :

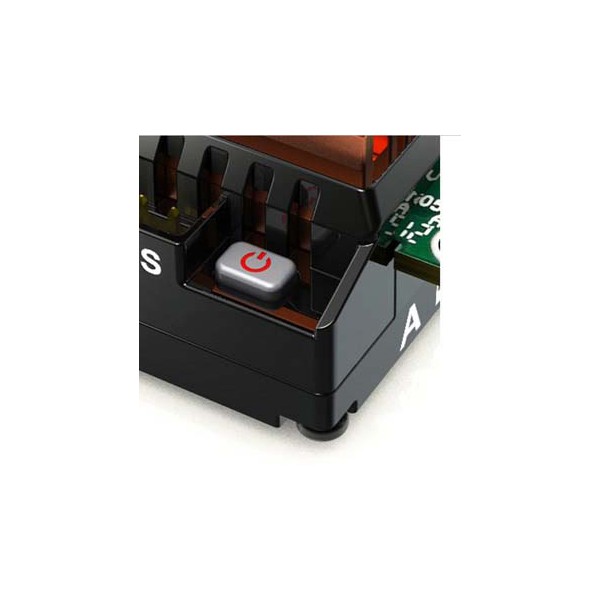

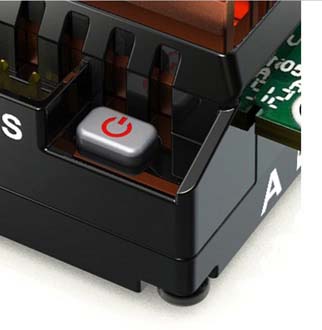

Built-in electronic ON/OFF switch :

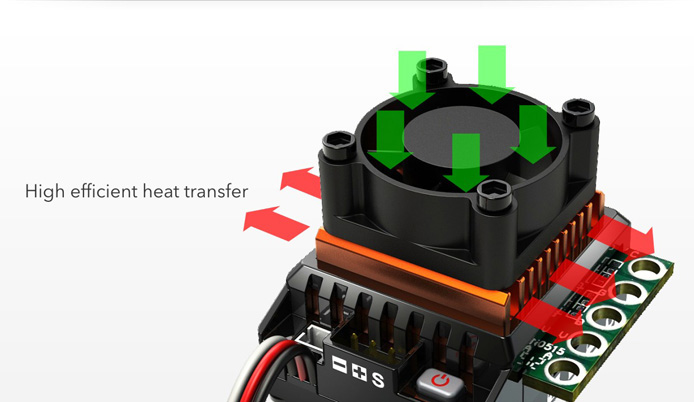

High efficient heat transfer :

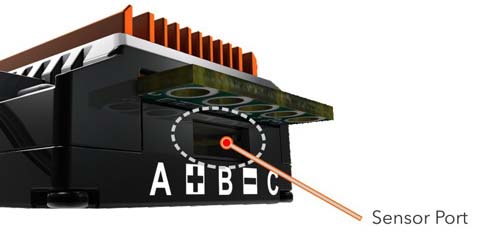

Support both sensored and sensorless motors :

Easy programming :

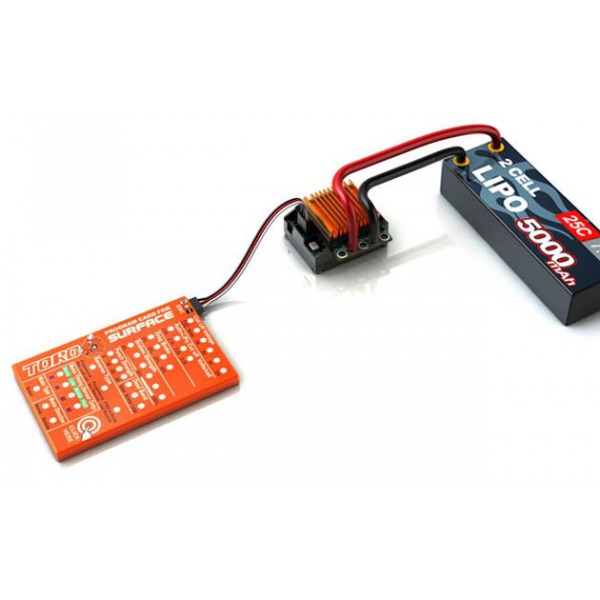

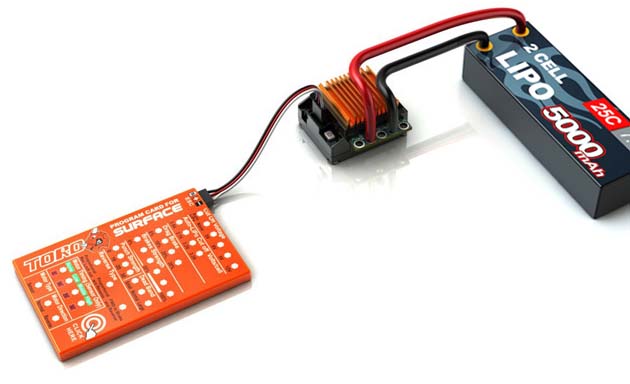

Simply connect it to the Program Card, you could do ESC programming  in a short time and get ready for next run.

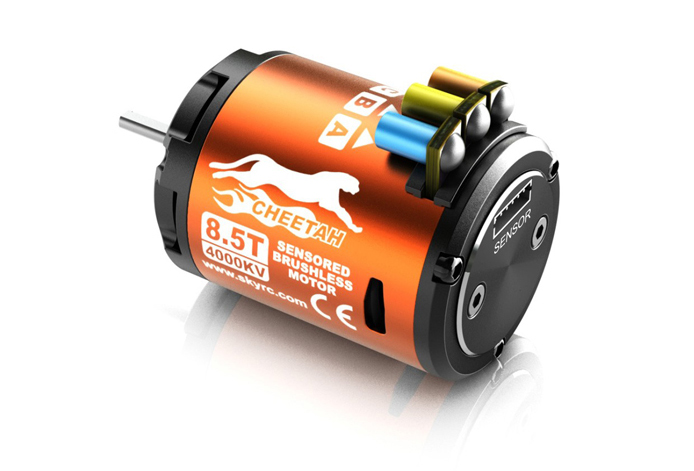

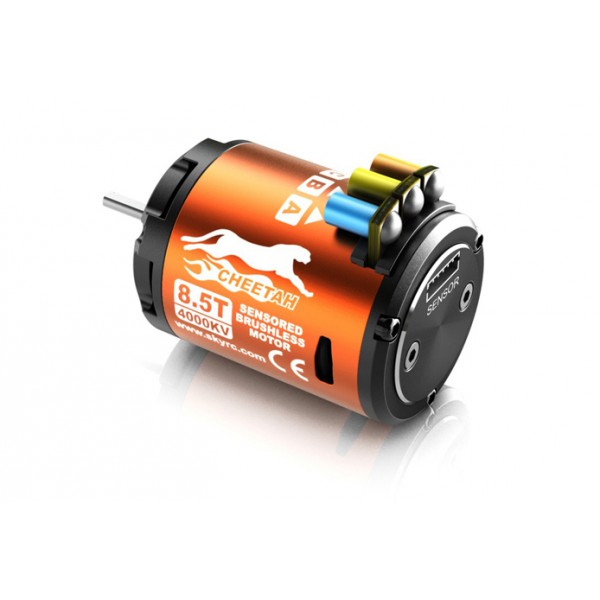

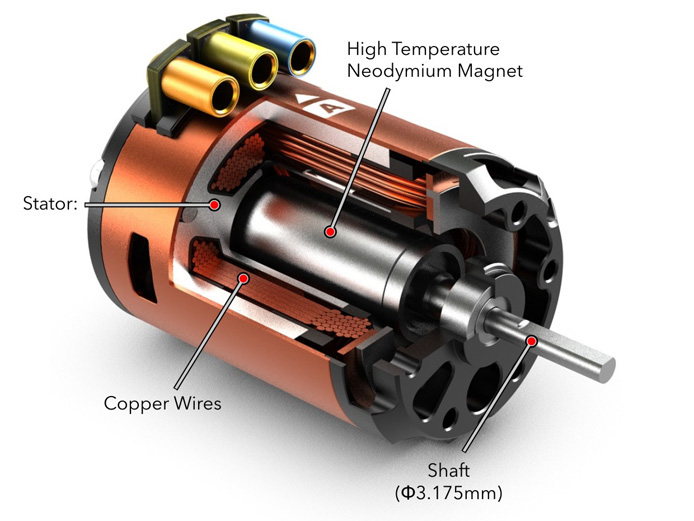

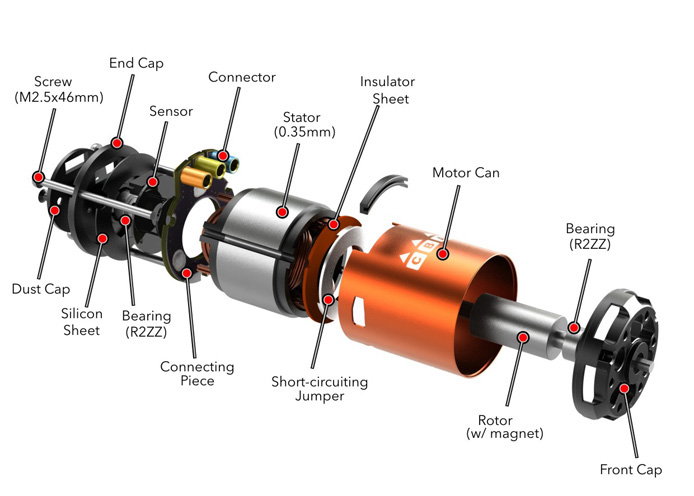

Cheetah 1/10th Sensored Motor

Cheetah 1/10th 60A Sensored Combo set is available with five kinds of motors (8.5T 4000KV/ 10.5T 3250KV/ 13.5T 2590KV/ 17.5T 1870KV/21.5T 1600KV). You could mix and match gearing and number of cells that they are using to create a power system that can be mild or wild with any of the motors.

Sensor-Based for Excellent Torque and Low-Speed Drivability :

Specifications

Cheetah 1/10th CS60 60 A Sensored ESC

  • Compatible vehicles : 1/10 & 1/12
  • Compatible batteries : 2-3S Lipo / 5-9S NiMH.
  • BEC : 6V / 3A

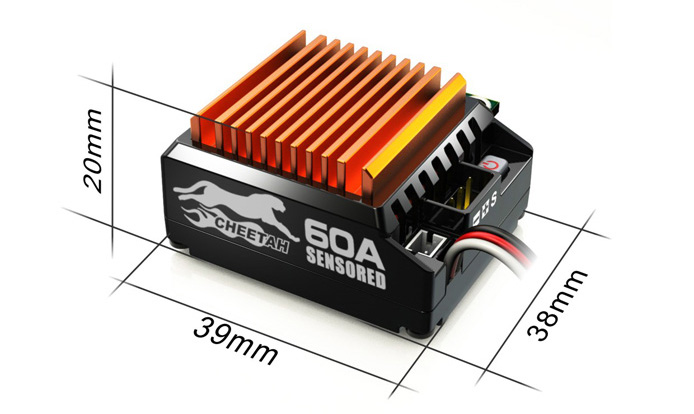

  • Dimensions : 39 x 38 x 20 mm

Moteur Cheetah Kv 4000

  • Power : 400 W
  • Rotor : 12,5 mm
  • Kv : 4000 RPM/V
  • Weight : 165 g
  • Shaft diameter : 3.175 mm
  • Resistance : 14.2
  • Lipo : 2-3S
  • Touring Car 1/10 Medium Track : 6.4:1
  • Touring Car 1/10 Small Track : 7.1:1

The above suggestion is based on using 12.5mm rotor and esc without timing setting.

Data sheet

  • Manufacturer : SkyRC

Composition Kit

  • Cheetah 8.5 T brushless motor
  • Cheetah 1/10th CS60 60A Sensored ESC
  • Programmation card
