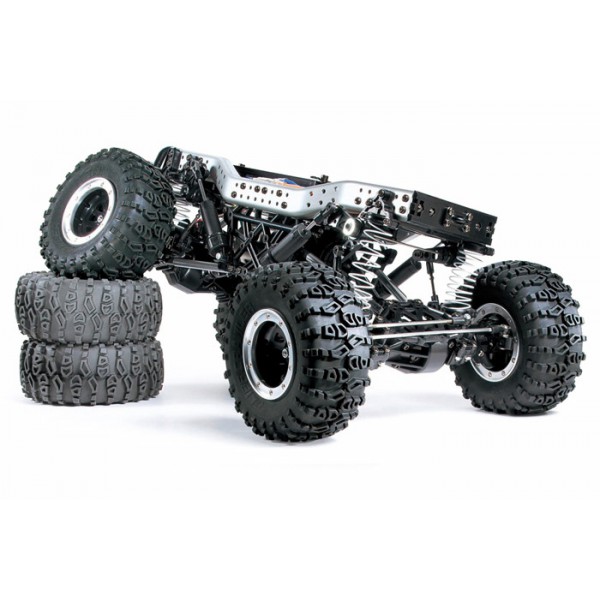

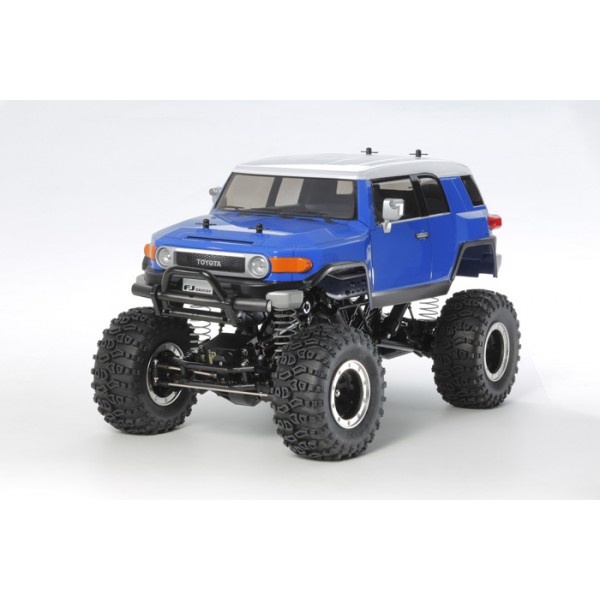

The highly popular Toyota FJ Cruiser that is available on the Tamiya CC-01 (Cross Country) platform has found its way onto the CR-01 platform, for a limited time only. The tough CR-01 chassis has a ladder frame featuring aluminum side channels, and resin cross members, as well as a 4-link rigid suspension with oil dampers actuated via aluminum push rods. This set-up gives the suspension stroke needed to handle rugged, rocky surfaces. The motor is placed in a central position, with planetary gears enabling low-speed shaft-driven 4WD. 125mm-diameter tires are fitted to bead lock wheels, and make an impressive combination with the lightweight and durable polycarbonate body.
Key features
| Separate parts are included to recreate side mirrors, grill and spare tire cover. |

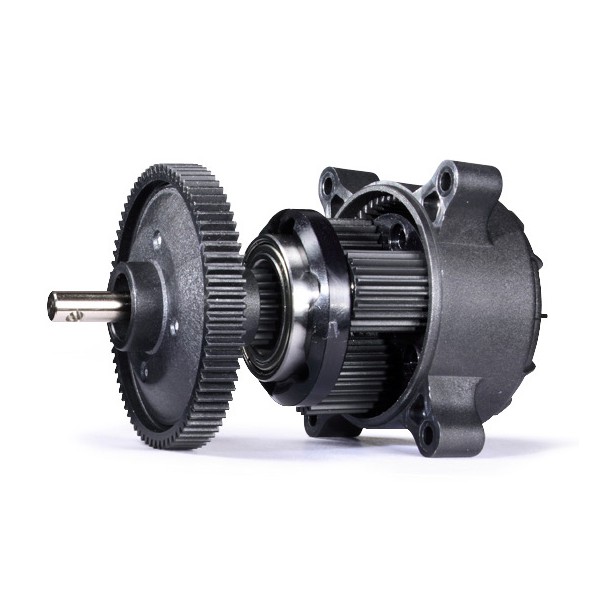

| The shaft driven chassis features a compact planetary gearbox which transfers power to the wheels, and is small enough to enable a lower center of gravity. |

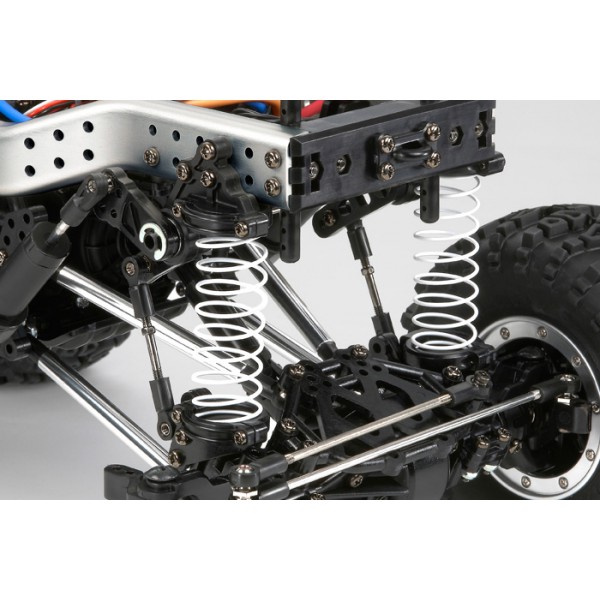

| The CR-01 chassis? supreme climbing ability stems from the rigid 4-link suspension with front/rear stabilizers. It is fitted with push rod-actuated oil dampers, with coil springs to act as tension springs. |
| Front and rear 3-bevel differentials are lockable with a simple turn of a screw to provide even better traction in off-road conditions. |

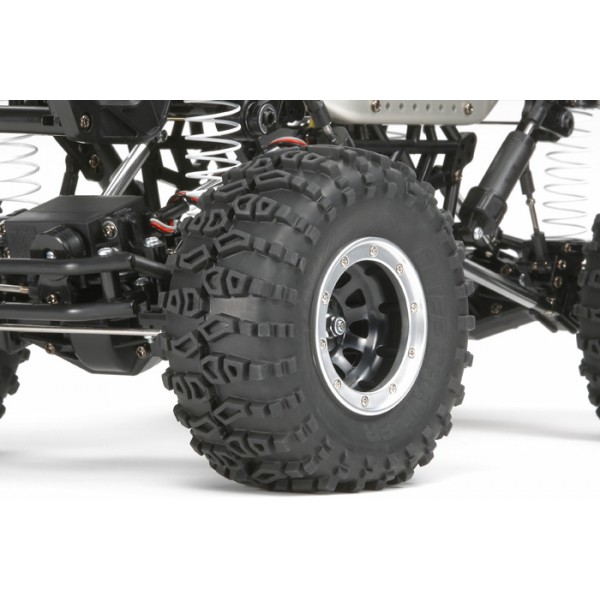

| Tires with side tread patterns provide further-enhanced grip. |
Specifications
| Scale | 1/10 |
| Construction type | Assembly kit |
| Terrain use | Off-Road |
| Drive-train | 4WD |
| Drive type | Gearbox |
| Drive line | Solid axle |
| Differential type | Gear |
| Suspension | 4-link |
| Steering mechanism | Direct servo |
| Shock damper | Oil-filled damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Block-pattern |
| Body material | Polycarbonate |
| Chassis material | Aluminum & plastic |
| Electronic Speed Control (ESC) | Not included |
| ESC model | N/A |
| LED Light buckets | Yes |
| LED lights | Sold separately |
| Motor | 540-brushed type |
| Bearings | Shielded ball bearing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front and rear |
| Adjustable ground clearance | Yes |
| Adjustable gear ratio | Yes |
| Adjustable wheelbase | Yes |
| Adjustable track width | Fixed |
| Adjustable shock angle | Yes |
Data sheet
- Manufacturer : Tamiya
- Level of difficulty (1 to 3) : 2
What you need to complete
| 7.2 battery & charger |
| 2-channel radio gear & electronic speed control |
| Polycarbonate paint |
