Hobbywing

Ezrun ESC MAX6 V3 160A BEC 6A 3-8s WP for 1/6

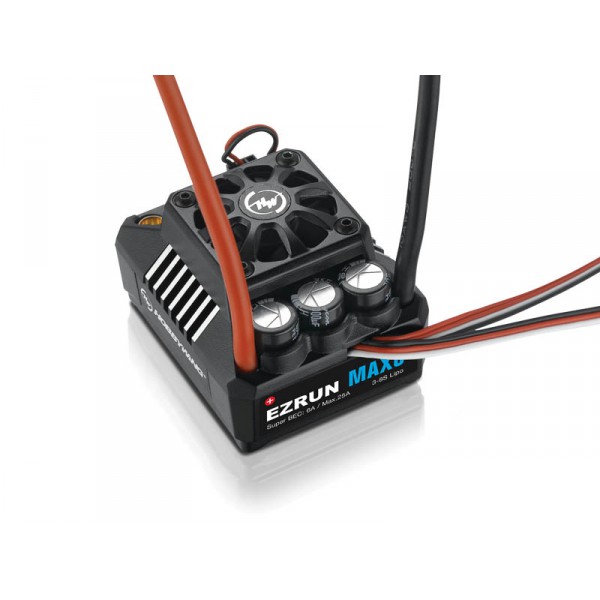

Hobbywing EzRun MAX6-V3 160 A Waterproof ESC

More details

Hobbywing

HW30105000

In stock at the supplier In stock at our supplier. Shipment in 2 days, without warranty.

 Shippingcosts from 6.99€
or collect for free at the shop. .

165,99 €
*


Notify me when available

More info

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error. This ESC is applicable to various 1/6th & 1/7th scale vehicles like the Traxxas XO-1, and also suitable to various 1/8th scale heavy vehicles like the CEN GST-E. It's the ideal option for high-end aggressively powered builds.

With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.

The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles. The MAX6 also features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust

Key features

  • High Reliability & Durability
  • Great Flexibility & Versatility
  • Advanced and Secure Electronic Switch
  • Applicable to All Weather Conditions
  • High Voltage Built-in BEC
  • Advanced and Secure Electronic Switch
  • Regular Firmware Updates - Free of Charge
  • Built-in Anti-Spark System
  • Maintenance Free

Specifications

  • Scale: 1/6th?1/7th
  • Brushed/Brushless:BL
  • Sensored/Sensorless: SL
  • Waterproof: Yes
  • Cont./Peak Current: 160A/1050A
  • Input: 3-8S LiPo/9-24 Cells NiMH
  • BEC Output: Switch Mode: 6V/7.4V,6A
  • Input Wires: Red-10AWG-200mm*1/Black-10AWG-200mm*1
  • Output Wires: Black-10AWG-200mm*3
  • Input Connectors: No
  • Output Connecotors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
  • Fan Size: 35.0x35.0x10.0mm
  • Fan Voltage Range: 5-7.4V
  • WiFi Module: Supported
  • Program Port: FAN/Program Port
  • Size: 70.0x56.0x46.5mm
  • Weight: 240g

Data sheet

  • Manufacturer : Hobbywing
