Nosram

HD Offroad

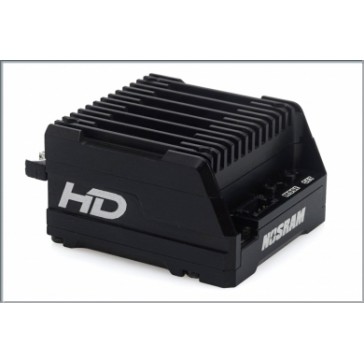

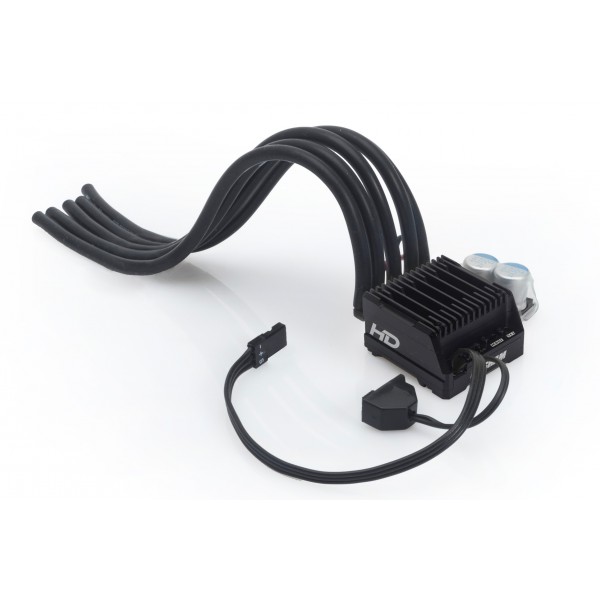

NOSRAM HD Offroad brushless ESC

More details

Nosram

NOS900003

Out of stock Can not be ordered because not in stock at our supplier. Delivery time unknown

 Shippingcosts from 6.99€
or collect for free at the shop. .

225,99 €
*

Notify me when available

More info

The Nosram HD Series comes equipped with completely redesigned power board and logic board to unleash the full potential of the new software and to provide reliability for today’s extreme racing demands. With 8 copper layers and a total thickness of 2.8mm, the Nosram HD Series heavy duty power board achieves minimal resistance and drops core temperatures significantly.

First time in use are the exclusive Customized Super FETs CSF-01. To improve internal cooling further, new copper cooling plates come soldered on both PCB sides. Backed with a bulletproof 6V/6V BEC and newly selected high quality components ensure most consistent operation under extreme loads.

Finally, rounded off with pre-soldered all black 12AWG power wires, 175mm long receiver lead and astonishing new dark full aluminum case with aluminum pushbuttons, the new Nosram HD Offroad will completely stand out and be perfectly fitted to any offroad car chassis.

The Nosram HD Offroad comes pre-installed with the all new v3.1 software. This software is adapted to the new hardware and new vital features have been added to make it best possible for today´s need in Offroad racing.

New Timing parameters make the new Nosram HD Offroad even more driveable and smooth in terms of power delivery while at the same time reaching even higher top speeds at any track. On the other end comes the Nosram specialty, 4 different brake types paired with unique Ramp feature to match all different surfaces and driving styles. To give Stock class racers the edge, the benefit from the feel of a pure Nosram speed control is backed with the power board’s low resistance, ensuring most direct motor control with minimum losses.

By the time of release, Nosram continues to use its well-known effective system for fast trackside adjustments with pushbuttons, with no need to use a separate programming unit. The Nosram HD speed control Series however is designed to support external programming device which is planned to be offered later on. Combined with an all new user manual concept, the Nosram HD remains effective and easy to use for everybody.

Key features

  • Customized Super FETs
  • Heavy duty 2.8mm 8-layer power board
  • NEW v3.1 software specialized for Offroad racing
  • Bulletproof 6V/6A BEC for the most reliable power output
  • Full aluminium case in exclusive state of the art design

Specifications

BEC / Electric power supply of the receiver 6V/6A linear
Weight 44g
Rec. Motorlimit Brushless ocer 2.5T
sensored brushless system Yes
Rated Current 220A
Forward/Brake Yes
Dimension 337x326x198mm
input voltage 7.4V (2S)
multi mode profile adjustment Yes
power wires 12 AWG black

Data sheet

  • Manufacturer : Nosram

HD Offroad

225,99 €
